Steel Pipe Flange Dimensions

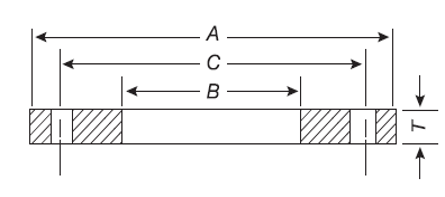

Flanges per AWWA C207 (Class B, D, E, F)
| AWWA Class | Nominal Pipe Size (NPS) | OD Flange (A) in. | ID Flange (B) in. | Bolt Number | Bolt Circle Diameter (C) in. | Diameter of Bolts in. | Flange Thickness (T)in. |
|---|---|---|---|---|---|---|---|
| B | 4 | 9 | 4.57 | 8 | 7.5 | 0.625 | 0.625 |
| B | 5 | 10 | 5.66 | 8 | 8.5 | 0.75 | 0.625 |
| B | 6 | 11 | 6.72 | 8 | 9.5 | 0.75 | 0.688 |
| B | 8 | 13.5 | 8.72 | 8 | 11.75 | 0.75 | 0.688 |
| B | 10 | 16 | 10.88 | 12 | 14.25 | 0.875 | 0.688 |
| B | 12 | 19 | 12.88 | 12 | 17 | 0.875 | 0.688 |
| B | 14 | 21 | 14.19 | 12 | 18.75 | 1 | 0.688 |
| B | 16 | 23.5 | 16.19 | 16 | 21.25 | 1 | 0.688 |
| B | 18 | 25 | 18.19 | 16 | 22.75 | 1.125 | 0.688 |
| B | 20 | 27.5 | 20.19 | 20 | 25 | 1.125 | 0.688 |
| B | 22 | 29.5 | 22.19 | 20 | 27.25 | 1.25 | 0.75 |
| B | 24 | 32 | 24.19 | 20 | 29.5 | 1.25 | 0.75 |
| B | 26 | 34.25 | — | 24 | 31.75 | 1.25 | 0.812 |
| B | 28 | 36.5 | — | 28 | 34 | 1.25 | 0.875 |
| B | 30 | 38.75 | — | 28 | 36 | 1.25 | 0.875 |
| B | 32 | 41.75 | — | 28 | 38.5 | 1.5 | 0.938 |
| B | 34 | 43.75 | — | 32 | 40.5 | 1.5 | 0.938 |
| B | 36 | 46 | — | 32 | 42.75 | 1.5 | 1 |
| B | 38 | 48.75 | — | 32 | 45.25 | 1.5 | 1 |
| B | 40 | 50.75 | — | 36 | 47.25 | 1.5 | 1 |
| B | 42 | 53 | — | 36 | 49.5 | 1.5 | 1.125 |
| B | 44 | 55.25 | — | 40 | 51.75 | 1.5 | 1.125 |
| B | 46 | 57.25 | — | 40 | 53.75 | 1.5 | 1.125 |
| B | 48 | 59.5 | — | 44 | 56 | 1.5 | 1.25 |
| B | 50 | 61.75 | — | 44 | 58.25 | 1.75 | 1.25 |
| B | 52 | 64 | — | 44 | 60.5 | 1.75 | 1.25 |
| B | 54 | 66.25 | — | 44 | 62.75 | 1.75 | 1.375 |
| B | 60 | 73 | — | 52 | 69.25 | 1.75 | 1.5 |
| B | 66 | 80 | — | 52 | 76 | 1.75 | 1.625 |
| B | 72 | 86.5 | — | 60 | 82.5 | 1.75 | 1.75 |
| B | 78 | 93 | — | 64 | 89 | 2 | 2 |
| B | 84 | 99.75 | — | 64 | 95.5 | 2 | 2 |
| B | 90 | 106.5 | — | 68 | 102 | 2.25 | 2.25 |
| B | 96 | 113.25 | — | 68 | 108.5 | 2.25 | 2.25 |
| B | 102 | 120 | — | 72 | 114.5 | 2.5 | 2.5 |
| B | 108 | 126.75 | — | 72 | 120.75 | 2.5 | 2.5 |
| B | 114 | 133.5 | — | 76 | 126.75 | 2.75 | 2.75 |
| B | 120 | 140.25 | — | 76 | 132.75 | 2.75 | 2.75 |
| B | 126 | 147 | — | 80 | 139.25 | 3 | 3 |
| B | 132 | 153.75 | — | 80 | 145.75 | 3 | 3 |
| B | 144 | 167.25 | — | 84 | 158.25 | 3.25 | 3.25 |
| D | 4 | 9 | 4.57 | 8 | 7.5 | 0.625 | 0.625 |
| D | 5 | 10 | 5.66 | 8 | 8.5 | 0.75 | 0.625 |
| D | 6 | 11 | 6.72 | 8 | 9.5 | 0.75 | 0.688 |
| D | 8 | 13.5 | 8.72 | 8 | 11.75 | 0.75 | 0.688 |
| D | 10 | 16 | 10.88 | 12 | 14.25 | 0.875 | 0.688 |
| D | 12 | 19 | 12.88 | 12 | 17 | 0.875 | 0.812 |
| D | 14 | 21 | 14.19 | 12 | 18.75 | 1 | 0.938 |
| D | 16 | 23.5 | 16.19 | 16 | 21.25 | 1 | 1 |
| D | 18 | 25 | 18.19 | 16 | 22.75 | 1.125 | 1.062 |
| D | 20 | 27.5 | 20.19 | 20 | 25 | 1.125 | 1.125 |
| D | 22 | 29.5 | 22.19 | 20 | 27.25 | 1.25 | 1.188 |
| D | 24 | 32 | 24.19 | 20 | 29.5 | 1.25 | 1.25 |
| D | 26 | 34.25 | — | 24 | 31.75 | 1.25 | 1.312 |
| D | 28 | 36.5 | — | 28 | 34 | 1.25 | 1.312 |
| D | 30 | 38.75 | — | 28 | 36 | 1.25 | 1.375 |
| D | 32 | 41.75 | — | 28 | 38.5 | 1.5 | 1.5 |
| D | 34 | 43.75 | — | 32 | 40.5 | 1.5 | 1.5 |
| D | 36 | 46 | — | 32 | 42.75 | 1.5 | 1.625 |
| D | 38 | 48.75 | — | 32 | 45.25 | 1.5 | 1.625 |
| D | 40 | 50.75 | — | 36 | 47.25 | 1.5 | 1.625 |
| D | 42 | 53 | — | 36 | 49.5 | 1.5 | 1.75 |
| D | 44 | 55.25 | — | 40 | 51.75 | 1.5 | 1.75 |
| D | 46 | 57.25 | — | 40 | 53.75 | 1.5 | 1.75 |
| D | 48 | 59.5 | — | 44 | 56 | 1.5 | 1.875 |
| D | 50 | 61.75 | — | 44 | 58.25 | 1.75 | 2 |
| D | 52 | 64 | — | 44 | 60.5 | 1.75 | 2 |
| D | 54 | 66.25 | — | 44 | 62.75 | 1.75 | 2.125 |
| D | 60 | 73 | — | 52 | 69.25 | 1.75 | 2.25 |
| D | 66 | 80 | — | 52 | 76 | 1.75 | 2.5 |
| D | 72 | 86.5 | — | 60 | 82.5 | 1.75 | 2.625 |
| D | 78 | 93 | — | 64 | 89 | 2 | 2.75 |
| D | 84 | 99.75 | — | 64 | 95.5 | 2 | 2.875 |
| D | 90 | 106.5 | — | 68 | 102 | 2.25 | 3 |
| D | 96 | 113.25 | — | 68 | 108.5 | 2.25 | 3.25 |
| D | 102 | 120 | — | 72 | 114.5 | 2.5 | 3.25 |
| D | 108 | 126.75 | — | 72 | 120.75 | 2.5 | 3.375 |
| D | 114 | 133.5 | — | 76 | 126.75 | 2.75 | 3.5 |
| D | 120 | 140.25 | — | 76 | 132.75 | 2.75 | 3.5 |
| D | 126 | 147 | — | 80 | 139.25 | 3 | 3.75 |
| D | 132 | 153.75 | — | 80 | 145.75 | 3 | 3.875 |
| D | 144 | 167.25 | — | 84 | 158.25 | 3.25 | 4.125 |
| E | 4 | 9 | 4.57 | 8 | 7.5 | 0.625 | 1.125 |
| E | 5 | 10 | 5.66 | 8 | 8.5 | 0.75 | 1.188 |
| E | 6 | 11 | 6.72 | 8 | 9.5 | 0.75 | 1.313 |
| E | 8 | 13.5 | 8.72 | 8 | 11.75 | 0.75 | 1.5 |
| E | 10 | 16 | 10.88 | 12 | 14.25 | 0.875 | 1.563 |
| E | 12 | 19 | 12.88 | 12 | 17 | 0.875 | 1.75 |
| E | 14 | 21 | 14.19 | 12 | 18.75 | 1 | 1.875 |
| E | 16 | 23.5 | 16.19 | 16 | 21.25 | 1 | 2 |
| E | 18 | 25 | 18.19 | 16 | 22.75 | 1.125 | 2.125 |
| E | 20 | 27.5 | 20.19 | 20 | 25 | 1.125 | 2.375 |
| E | 22 | 29.5 | 22.19 | 20 | 27.25 | 1.25 | 2.5 |
| E | 24 | 32 | 24.19 | 20 | 29.5 | 1.25 | 2.625 |
| E | 26 | 34.25 | — | 24 | 31.75 | 1.25 | 2.75 |
| E | 28 | 36.5 | — | 28 | 34 | 1.25 | 2.75 |
| E | 30 | 38.75 | — | 28 | 36 | 1.25 | 2.875 |
| E | 32 | 41.75 | — | 28 | 38.5 | 1.5 | 3 |
| E | 34 | 43.75 | — | 32 | 40.5 | 1.5 | 3 |
| E | 36 | 46 | — | 32 | 42.75 | 1.5 | 3.125 |
| E | 38 | 48.75 | — | 32 | 45.25 | 1.5 | 3.125 |
| E | 40 | 50.75 | — | 36 | 47.25 | 1.5 | 3.25 |
| E | 42 | 53 | — | 36 | 49.5 | 1.5 | 3.375 |
| E | 44 | 55.25 | — | 40 | 51.75 | 1.5 | 3.375 |
| E | 46 | 57.25 | — | 40 | 53.75 | 1.5 | 3.438 |
| E | 48 | 59.5 | — | 44 | 56 | 1.5 | 3.5 |
| E | 50 | 61.75 | — | 44 | 58.25 | 1.75 | 3.5 |
| E | 52 | 64 | — | 44 | 60.5 | 1.75 | 3.625 |
| E | 54 | 66.25 | — | 44 | 62.75 | 1.75 | 3.75 |
| E | 60 | 73 | — | 52 | 69.25 | 1.75 | 3.875 |
| E | 66 | 80 | — | 52 | 76 | 1.75 | 4.25 |
| E | 72 | 86.5 | — | 60 | 82.5 | 1.75 | 4.375 |
| E | 78 | 93 | — | 64 | 89 | 2 | 4.75 |
| E | 84 | 99.75 | — | 64 | 95.5 | 2 | 4.75 |
| E | 90 | 106.5 | — | 68 | 102 | 2.25 | 5.125 |
| E | 96 | 113.25 | — | 68 | 108.5 | 2.25 | 5.125 |
| E | 102 | 120 | — | 72 | 114.5 | 2.5 | 5.5 |
| E | 108 | 126.75 | — | 72 | 120.75 | 2.5 | 5.5 |
| E | 114 | 133.5 | — | 76 | 126.75 | 2.75 | 5.875 |
| E | 120 | 140.25 | — | 76 | 132.75 | 2.75 | 5.875 |
| E | 126 | 147 | — | 80 | 139.25 | 3 | 6.25 |
| E | 132 | 153.75 | — | 80 | 145.75 | 3 | 6.25 |
| E | 144 | 167.25 | — | 84 | 158.25 | 3.25 | 6.75 |
| F | 4 | 10 | 4.57 | 8 | 7.88 | 0.75 | 1.13 |
| F | 5 | 11 | 5.66 | 8 | 9.25 | 0.75 | 1.21 |
| F | 6 | 12.5 | 6.73 | 12 | 10.62 | 0.75 | 1.31 |
| F | 8 | 15 | 8.73 | 12 | 13 | 0.875 | 1.31 |
| F | 10 | 17.5 | 10.88 | 16 | 15.25 | 1 | 1.5 |
| F | 12 | 20.5 | 12.88 | 16 | 17.75 | 1.125 | 1.63 |
| F | 14 | 23 | 14.19 | 20 | 20.25 | 1.125 | 1.94 |
| F | 16 | 25.5 | 16.19 | 20 | 22.5 | 1.25 | 2.14 |
| F | 18 | 28 | 18.19 | 24 | 24.75 | 1.25 | 2.25 |
| F | 20 | 30.5 | 20.19 | 24 | 27 | 1.25 | 2.33 |
| F | 22 | 33 | 22.19 | 24 | 29.25 | 1.25 | 2.5 |
| F | 24 | 36 | 24.19 | 24 | 32 | 1.5 | 2.69 |
| F | 26 | 38.25 | — | 28 | 34.5 | 1.75 | 3 |
| F | 28 | 40.75 | — | 28 | 37 | 1.75 | 3.13 |
| F | 30 | 43 | — | 28 | 39.25 | 1.75 | 3.15 |
| F | 32 | 45.25 | — | 28 | 41.5 | 1.75 | 3.25 |
| F | 34 | 47.5 | — | 28 | 43.5 | 1.75 | 3.38 |
| F | 36 | 50 | — | 32 | 46 | 2 | 3.46 |
| F | 38 | 52.25 | — | 32 | 48 | 2 | 3.5 |
| F | 40 | 54.25 | — | 36 | 50.25 | 2 | 3.63 |
| F | 42 | 57 | — | 36 | 52.75 | 2 | 3.81 |
| F | 44 | 59.25 | — | 36 | 55 | 2 | 4 |
| F | 46 | 61.5 | — | 40 | 57.25 | 2 | 4.13 |
| F | 48 | 65 | — | 40 | 60.75 | 2 | 4.5 |
Tbl. 4.F.1
Notes:
- Refer to ANSI/AWWA C207 for notes, design pressures, and additional minimum design requirements.
- Any column with "-" could relate to a note in the Standard or not be covered in the standard.
- Data columns from the reference standard may have been omitted
- All units are inches

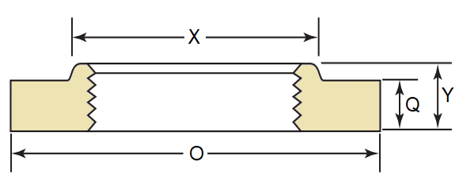

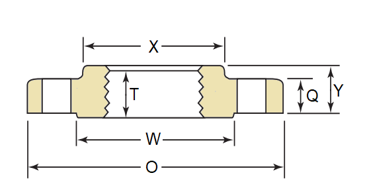

Flanges per ASME B16.1 (Class 25, 125, 250)
| ASME | Flange Class | Nominal Pipe Size (NPS) | Diameter Flange (O) | Min Thickness Flange (Q) | Hub- Min Diameter (X) | Hub- Min Length (Y) | Hub- Min Thread Length (T) | Raised Face Diameter (W) | Bolting- # of Bolts | Bolt Hole- Diameter Bolt Circle | Bolt Hole- Diameter Bolt Holes | Bolting- Bolt Diameter | Bolting- Length of Bolts | Bolting- Length of Stud Bolts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16.1 | 25 | 4 | 9 | 0.75 | 5.31 | 1.31 | … | … | 8 | 7.5 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 25 | 5 | 10 | 0.75 | 6.44 | 1.44 | … | … | 8 | 8.5 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 25 | 6 | 11 | 0.75 | 7.56 | 1.56 | … | … | 8 | 9.5 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 25 | 8 | 13.5 | 0.75 | 9.69 | 1.75 | … | … | 8 | 11.75 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 25 | 10 | 16 | 0.88 | 11.94 | 1.94 | … | … | 12 | 14.25 | 3/4 | 5/8 | 3 | … |
| 16.1 | 25 | 12 | 19 | 1 | 14.06 | 2.19 | … | … | 12 | 17 | 3/4 | 5/8 | 3 | … |
| 16.1 | 25 | 14 | 21 | 1.12 | 15.37 | 2.25 | … | … | 12 | 18.75 | 7/8 | 3/4 | 3.5 | … |
| 16.1 | 25 | 16 | 23.5 | 1.12 | 17.5 | 2.5 | … | … | 16 | 21.25 | 7/8 | 3/4 | 3.5 | … |
| 16.1 | 25 | 18 | 25 | 1.25 | 19.62 | 2.69 | … | … | 16 | 22.75 | 7/8 | 3/4 | 4 | … |
| 16.1 | 25 | 20 | 27.5 | 1.25 | 21.75 | 2.88 | … | … | 20 | 25 | 7/8 | 3/4 | 4 | … |
| 16.1 | 25 | 24 | 32 | 1.38 | 26 | 3.25 | … | … | 20 | 29.5 | 7/8 | 3/4 | 4 | … |
| 16.1 | 25 | 30 | 38.75 | 1.5 | … | … | … | … | 28 | 36 | 1 | 7/8 | 4.5 | … |
| 16.1 | 25 | 36 | 46 | 1.62 | … | … | … | … | 32 | 42.75 | 1 | 7/8 | 5 | … |
| 16.1 | 25 | 42 | 53 | 1.75 | … | … | … | … | 36 | 49.5 | 1 1/8 | 1 | 5.5 | … |
| 16.1 | 25 | 48 | 59.5 | 2 | … | … | … | … | 44 | 56 | 1 1/8 | 1 | 6 | … |
| 16.1 | 25 | 54 | 66.25 | 2.25 | … | … | … | … | 44 | 62.75 | 1 1/8 | 1 | 6.5 | … |
| 16.1 | 25 | 60 | 73 | 2.25 | … | … | … | … | 52 | 69.25 | 1 1/4 | 1 1/8 | 6.5 | … |
| 16.1 | 25 | 72 | 86.5 | 2.5 | … | … | … | … | 60 | 82.5 | 1 1/4 | 1 1/8 | 7 | … |
| 16.1 | 25 | 84 | 99.75 | 2.75 | … | … | … | … | 64 | 95.5 | 1 3/8 | 1 1/4 | 7.5 | … |
| 16.1 | 25 | 96 | 113.25 | 3 | … | … | … | … | 68 | 108.5 | 1 3/8 | 1 1/4 | 8 | … |
| 16.1 | 125 | 1 | 4.25 | 0.44 | 1.94 | 0.69 | … | … | 4 | 3.12 | 5/8 | 1/2 | 2 | … |
| 16.1 | 125 | 1 1/4 | 4.62 | 0.5 | 2.31 | 0.81 | … | … | 4 | 3.5 | 5/8 | 1/2 | 2 | … |
| 16.1 | 125 | 1 1/2 | 5 | 0.56 | 2.56 | 0.88 | … | … | 4 | 3.88 | 5/8 | 1/2 | 2 | … |
| 16.1 | 125 | 2 | 6 | 0.62 | 3.06 | 1 | … | … | 4 | 4.75 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 125 | 2 1/2 | 7 | 0.69 | 3.56 | 1.12 | … | … | 4 | 5.5 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 125 | 3 | 7.5 | 0.75 | 4.25 | 1.19 | … | … | 4 | 6 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 125 | 3 1/2 | 8.5 | 0.81 | 4.81 | 1.25 | … | … | 8 | 7 | 3/4 | 5/8 | 3 | … |
| 16.1 | 125 | 4 | 9 | 0.94 | 5.31 | 1.31 | … | … | 8 | 7.5 | 3/4 | 5/8 | 3 | … |
| 16.1 | 125 | 5 | 10 | 0.94 | 6.44 | 1.44 | … | … | 8 | 8.5 | 7/8 | 3/4 | 3 | … |
| 16.1 | 125 | 6 | 11 | 1 | 7.56 | 1.56 | … | … | 8 | 9.5 | 7/8 | 3/4 | 3.5 | … |
| 16.1 | 125 | 8 | 13.5 | 1.12 | 9.69 | 1.75 | … | … | 8 | 11.75 | 7/8 | 3/4 | 3.5 | … |
| 16.1 | 125 | 10 | 16 | 1.19 | 11.94 | 1.94 | … | … | 12 | 14.25 | 1 | 7/8 | 4 | … |
| 16.1 | 125 | 12 | 19 | 1.25 | 14.06 | 2.19 | … | … | 12 | 17 | 1 | 7/8 | 4 | … |
| 16.1 | 125 | 14 | 14 | 1.38 | 15.38 | 2.25 | … | … | 12 | 18.75 | 1 1/8 | 1 | 4.5 | … |
| 16.1 | 125 | 16 | 23.5 | 1.44 | 17.5 | 2.5 | … | … | 16 | 21.25 | 1 1/8 | 1 | 4.5 | … |
| 16.1 | 125 | 18 | 25 | 1.56 | 19.62 | 2.69 | … | … | 16 | 22.75 | 1 1/4 | 1 1/8 | 5 | … |
| 16.1 | 125 | 20 | 27.5 | 1.69 | 21.75 | 2.88 | … | … | 20 | 25 | 1 1/4 | 1 1/8 | 5 | … |
| 16.1 | 125 | 24 | 32 | 1.88 | 26 | 3.25 | … | … | 20 | 29.5 | 1 3/8 | 1 1/4 | 5.5 | … |
| 16.1 | 125 | 30 | 38.75 | 2.12 | … | … | … | … | 28 | 36 | 1 3/8 | 1 1/4 | 6.5 | … |
| 16.1 | 125 | 36 | 46 | 2.38 | … | … | … | … | 32 | 42.75 | 1 5/8 | 1 1/2 | 7 | 9 |
| 16.1 | 125 | 42 | 53 | 2.62 | … | … | … | … | 36 | 49.5 | 1 5/8 | 1 1/2 | 7.5 | 9.5 |
| 16.1 | 125 | 48 | 59.5 | 2.75 | … | … | … | … | 44 | 56 | 1 5/8 | 1 1/2 | 8 | 9.5 |
| 16.1 | 125 | 54 (-) | 66.25 | 3 | … | … | … | … | 44 | 62.75 | 2 | 1 3/4 | 8.5 | 10.5 |
| 16.1 | 125 | 60 (-) | 73 | 3.12 | … | … | … | … | 52 | 69.25 | 2 | 1 3/4 | 9 | 11 |
| 16.1 | 125 | 66 (-) | 80 | 3.38 | … | … | … | … | 52 | 76 | 2 | 1 3/4 | 9.5 | 11.5 |
| 16.1 | 125 | 72 (-) | 86.5 | 3.5 | … | … | … | … | 60 | 82.5 | 2 | 1 3/4 | 9.5 | 11.5 |
| 16.1 | 125 | 78 (-) | 93 | 3.75 | … | … | … | … | 64 | 89 | 2 1/4 | 2 | 10.5 | 12.5 |
| 16.1 | 125 | 84 (-) | 99.75 | 3.88 | … | … | … | … | 64 | 95.5 | 2 1/4 | 2 | 10.5 | 13 |
| 16.1 | 125 | 90 (-) | 106.5 | 4.12 | … | … | … | … | 68 | 102 | 2 1/2 | 2 1/4 | 11.5 | 14 |
| 16.1 | 125 | 96 (-) | 113.25 | 4.25 | … | … | … | … | 68 | 108.5 | 2 1/2 | 2 1/4 | 11.5 | 14 |
| 16.1 | 250 | 1 | 4.88 | 0.69 | 2.06 | 0.88 | 0.68 | 2.69 | 4 | 3.5 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 250 | 1 1/4 | 5.25 | 0.75 | 2.5 | 1 | 0.81 | 3.06 | 4 | 3.88 | 3/4 | 5/8 | 2.5 | … |
| 16.1 | 250 | 1 1/2 | 6.12 | 0.81 | 2.75 | 1.12 | 0.87 | 3.56 | 4 | 4.5 | 7/8 | 3/4 | 3 | … |
| 16.1 | 250 | 2 | 6.5 | 0.88 | 3.31 | 1.25 | 1 | 4.19 | 8 | 5 | 3/4 | 5/8 | 3 | … |
| 16.1 | 250 | 2 1/2 | 7.5 | 1 | 3.94 | 1.43 | 1.13 | 4.94 | 8 | 5.88 | 7/8 | 3/4 | 3.5 | … |
| 16.1 | 250 | 3 | 8.25 | 1.12 | 4.62 | 1.56 | 1.19 | 5.69 | 8 | 6.62 | 7/8 | 3/4 | 3.5 | … |
| 16.1 | 250 | 3 1/2 | 9 | 1.19 | 5.25 | 1.62 | 1.25 | 6.31 | 8 | 7.25 | 7/8 | 3/4 | 3.5 | … |
| 16.1 | 250 | 4 | 10 | 1.25 | 5.75 | 1.75 | 1.31 | 6.94 | 8 | 7.88 | 7/8 | 3/4 | 4 | … |
| 16.1 | 250 | 5 | 11 | 1.38 | 7 | 1.88 | 1.44 | 8.31 | 8 | 9.25 | 7/8 | 3/4 | 4 | … |
| 16.1 | 250 | 6 | 12.5 | 1.44 | 8.12 | 1.94 | 1.56 | 9.69 | 12 | 10.62 | 7/8 | 3/4 | 4 | … |
| 16.1 | 250 | 8 | 15 | 1.62 | 10.25 | 2.19 | 1.75 | 11.94 | 12 | 13 | 1 1/8 | 7/8 | 4.5 | … |
| 16.1 | 250 | 10 | 17.5 | 1.88 | 12.62 | 2.38 | 1.94 | 14.06 | 16 | 15.25 | 1 1/4 | 1 | 5.5 | … |
| 16.1 | 250 | 12 | 20.5 | 2 | 14.75 | 2.56 | 2.19 | 16.44 | 16 | 17.75 | 1 1/4 | 1 1/8 | 5.5 | … |
| 16.1 | 250 | 14 | 23 | 2.12 | 16.25 | 2.69 | 2.25 | 18.94 | 20 | 20.25 | 1 3/8 | 1 1/8 | 6 | … |
| 16.1 | 250 | 16 | 25 | 2.25 | 18.38 | 2.88 | 2.5 | 21.06 | 20 | 22.5 | 1 3/8 | 1 1/4 | 6.5 | … |
| 16.1 | 250 | 18 | 28 | 2.38 | … | … | … | 23.31 | 24 | 24.75 | 1 3/8 | 1 1/4 | 6.5 | … |
| 16.1 | 250 | 20 | 30.5 | 2.5 | … | … | … | 25.56 | 24 | 27 | 1 3/8 | 1 1/4 | 7 | … |
| 16.1 | 250 | 24 | 36 | 2.75 | … | … | … | 30.31 | 24 | 32 | 1 5/8 | 1 1/2 | 7.5 | 9.5 |
| 16.1 | 250 | 30 | 43 | 3 | … | … | … | 37.19 | 28 | 39.25 | 2 | 1 3/4 | 8.5 | 10.5 |
| 16.1 | 250 | 36 (-) | 50 | 3.38 | … | … | … | 43.69 | 32 | 46 | 2 1/4 | 2 | 9.5 | 12 |
| 16.1 | 250 | 42 (-) | 57 | 3.69 | … | … | … | 50.44 | 36 | 52.75 | 2 1/4 | 2 | 10 | 12.5 |
| 16.1 | 250 | 48 (-) | 65 | 4 | … | … | … | 58.44 | 40 | 60.75 | 2 1/4 | 2 | 11 | 13 |
Tbl. 4.F.2
Notes:
- Refer to ANSI/ASME B16.1 for notes, pressures, and minimum design requirements.
- Any column with "-" relate to a note in the standard or may not be covered in the standard.
- Data columns from the reference standard may have been omitted.
- US units are inches, Metric Units are millimeters.
- Studs are measured parallel to the axis (L) from the first to the thread without the chamfers (points).
- Hex bolts are measured from under the head to the top of the bolt.

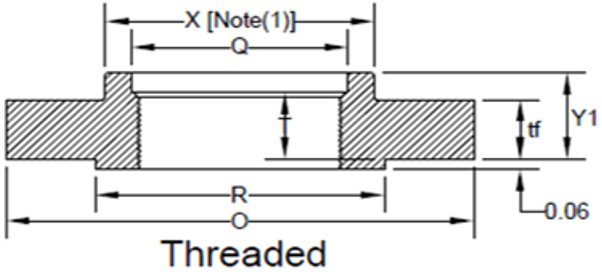

Threaded Steel Pipe Flanges per ASME B16.5 (Class 150, 300)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Min Thread Length Threaded (T) | Min Counterbore Threaded Flange (Q) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 150 | 1/2 | 3.5 | 2.38 | 5/8 | 4 | 1/2 | 2.25 | 2 | 1.19 | 0.62 | - |
| ASME 16.5 | 150 | 3/4 | 3.88 | 2.75 | 5/8 | 4 | 1/2 | 2.5 | 2 | 1.5 | 0.62 | - |
| ASME 16.5 | 150 | 1 | 4.25 | 3.12 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.94 | 0.69 | - |
| ASME 16.5 | 150 | 1 1/4 | 4.62 | 3.5 | 5/8 | 4 | 1/2 | 2.75 | 2.25 | 2.31 | 0.81 | - |
| ASME 16.5 | 150 | 1 1/2 | 5 | 3.88 | 5/8 | 4 | 1/2 | 2.75 | 2.5 | 2.56 | 0.88 | - |
| ASME 16.5 | 150 | 2 | 6 | 4.75 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 3.06 | 1 | - |
| ASME 16.5 | 150 | 2 1/2 | 7 | 5.5 | 3/4 | 4 | 5/8 | 3.5 | 3 | 3.56 | 1.12 | - |
| ASME 16.5 | 150 | 3 | 7.5 | 6 | 3/4 | 4 | 5/8 | 3.5 | 3 | 4.25 | 1.19 | - |
| ASME 16.5 | 150 | 3 1/2 | 8.5 | 7 | 3/4 | 8 | 5/8 | 3.5 | 3 | 4.81 | 1.25 | - |
| ASME 16.5 | 150 | 4 | 9 | 7.5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 5.31 | 1.31 | - |
| ASME 16.5 | 150 | 5 | 10 | 8.5 | 7/8 | 8 | 3/4 | 3.75 | 3.25 | 6.44 | 1.44 | - |
| ASME 16.5 | 150 | 6 | 11 | 9.5 | 7/8 | 8 | 3/4 | 4 | 3.25 | 7.56 | 1.56 | - |
| ASME 16.5 | 150 | 8 | 13.5 | 11.75 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 9.69 | 1.75 | - |
| ASME 16.5 | 150 | 10 | 16 | 14.25 | 1 | 12 | 7/8 | 4.5 | 4 | 12 | 1.94 | - |
| ASME 16.5 | 150 | 12 | 19 | 17 | 1 | 12 | 7/8 | 4.75 | 4 | 14.38 | 2.19 | - |
| ASME 16.5 | 150 | 14 | 21 | 18.75 | 1 1/8 | 12 | 1 | 5.25 | 4.5 | 15.75 | 2.25 | - |
| ASME 16.5 | 150 | 16 | 23.5 | 21.25 | 1 1/8 | 16 | 1 | 5.25 | 4.5 | 18 | 2.5 | - |
| ASME 16.5 | 150 | 18 | 25 | 22.75 | 1 1/4 | 16 | 1 1/8 | 5.75 | 5 | 19.88 | 2.69 | - |
| ASME 16.5 | 150 | 20 | 27.5 | 25 | 1 1/4 | 20 | 1 1/8 | 6.25 | 5.5 | 22 | 2.88 | - |
| ASME 16.5 | 150 | 22 | 29.5 | 27.25 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 24 | 3.13 | - |
| ASME 16.5 | 150 | 24 | 32 | 29.5 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 26.12 | 3.25 | - |
| ASME 16.5 | 300 | 1/2 | 3.75 | 2.62 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.5 | 0.62 | 0.93 |
| ASME 16.5 | 300 | 3/4 | 4.62 | 3.25 | 3/4 | 4 | 5/8 | 3 | 2.5 | 1.88 | 0.62 | 1.14 |
| ASME 16.5 | 300 | 1 | 4.88 | 3.5 | 3/4 | 4 | 5/8 | 3 | 2.5 | 2.12 | 0.69 | 1.41 |
| ASME 16.5 | 300 | 1 1/4 | 5.25 | 3.88 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 2.5 | 0.81 | 1.75 |
| ASME 16.5 | 300 | 1 1/2 | 6.12 | 4.5 | 7/8 | 4 | 3/4 | 3.5 | 3 | 2.75 | 0.88 | 1.98 |
| ASME 16.5 | 300 | 2 | 6.5 | 5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 3.31 | 1.12 | 2.5 |
| ASME 16.5 | 300 | 2 1/2 | 7.5 | 5.88 | 7/8 | 8 | 3/4 | 4 | 3.25 | 3.94 | 1.25 | 3 |
| ASME 16.5 | 300 | 3 | 8.25 | 6.62 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 4.62 | 1.25 | 3.63 |
| ASME 16.5 | 300 | 3 1/2 | 9 | 7.25 | 7/8 | 8 | 3/4 | 4.25 | 3.75 | 5.25 | 1.44 | 4.13 |
| ASME 16.5 | 300 | 4 | 10 | 7.88 | 7/8 | 8 | 3/4 | 4.5 | 3.75 | 5.75 | 1.44 | 4.63 |
| ASME 16.5 | 300 | 5 | 11 | 9.25 | 7/8 | 8 | 3/4 | 4.75 | 4.25 | 7 | 1.69 | 5.69 |
| ASME 16.5 | 300 | 6 | 12.5 | 10.62 | 7/8 | 12 | 3/4 | 4.75 | 4.25 | 8.12 | 1.81 | 6.75 |
| ASME 16.5 | 300 | 8 | 15 | 13 | 1 | 12 | 7/8 | 5.5 | 4.75 | 10.25 | 2 | 8.75 |
| ASME 16.5 | 300 | 10 | 17.5 | 15.25 | 1 1/8 | 16 | 1 | 6.25 | 5.5 | 12.62 | 2.19 | 10.88 |
| ASME 16.5 | 300 | 12 | 20.5 | 17.75 | 1 1/4 | 16 | 1 1/8 | 6.75 | 5.75 | 14.75 | 2.38 | 12.94 |
| ASME 16.5 | 300 | 14 | 23 | 20.25 | 1 1/4 | 20 | 1 1/8 | 7 | 6.25 | 16.75 | 2.5 | 14.19 |
| ASME 16.5 | 300 | 16 | 25.5 | 22.5 | 1 3/8 | 20 | 1 1/4 | 7.5 | 6.5 | 19 | 2.69 | 16.19 |
| ASME 16.5 | 300 | 18 | 28 | 24.75 | 1 3/8 | 24 | 1 1/4 | 7.75 | 6.75 | 21 | 2.75 | 18.19 |
| ASME 16.5 | 300 | 20 | 30.5 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 7.25 | 23.12 | 2.88 | 20.19 |
| ASME 16.5 | 300 | 22 | 33 | 29.25 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 25.25 | … | … |
| ASME 16.5 | 300 | 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 27.62 | 3.25 | 24.19 |
Tbl. 4.F.3

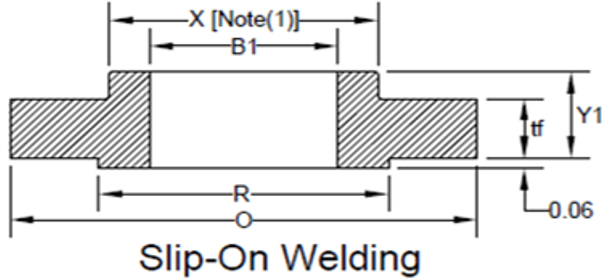

Slip-On Welding Steel Pipe Flanges per ASME B16.5 (Class 150, 300)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) |
|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 150 | 1/2 | 3.5 | 2.38 | 5/8 | 4 | 1/2 | 2.25 | 2 | 1.19 |
| ASME 16.5 | 150 | 3/4 | 3.88 | 2.75 | 5/8 | 4 | 1/2 | 2.5 | 2 | 1.5 |
| ASME 16.5 | 150 | 1 | 4.25 | 3.12 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.94 |
| ASME 16.5 | 150 | 1 1/4 | 4.62 | 3.5 | 5/8 | 4 | 1/2 | 2.75 | 2.25 | 2.31 |
| ASME 16.5 | 150 | 1 1/2 | 5 | 3.88 | 5/8 | 4 | 1/2 | 2.75 | 2.5 | 2.56 |
| ASME 16.5 | 150 | 2 | 6 | 4.75 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 3.06 |
| ASME 16.5 | 150 | 2 1/2 | 7 | 5.5 | 3/4 | 4 | 5/8 | 3.5 | 3 | 3.56 |
| ASME 16.5 | 150 | 3 | 7.5 | 6 | 3/4 | 4 | 5/8 | 3.5 | 3 | 4.25 |
| ASME 16.5 | 150 | 3 1/2 | 8.5 | 7 | 3/4 | 8 | 5/8 | 3.5 | 3 | 4.81 |
| ASME 16.5 | 150 | 4 | 9 | 7.5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 5.31 |
| ASME 16.5 | 150 | 5 | 10 | 8.5 | 7/8 | 8 | 3/4 | 3.75 | 3.25 | 6.44 |
| ASME 16.5 | 150 | 6 | 11 | 9.5 | 7/8 | 8 | 3/4 | 4 | 3.25 | 7.56 |
| ASME 16.5 | 150 | 8 | 13.5 | 11.75 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 9.69 |
| ASME 16.5 | 150 | 10 | 16 | 14.25 | 1 | 12 | 7/8 | 4.5 | 4 | 12 |
| ASME 16.5 | 150 | 12 | 19 | 17 | 1 | 12 | 7/8 | 4.75 | 4 | 14.38 |
| ASME 16.5 | 150 | 14 | 21 | 18.75 | 1 1/8 | 12 | 1 | 5.25 | 4.5 | 15.75 |
| ASME 16.5 | 150 | 16 | 23.5 | 21.25 | 1 1/8 | 16 | 1 | 5.25 | 4.5 | 18 |
| ASME 16.5 | 150 | 18 | 25 | 22.75 | 1 1/4 | 16 | 1 1/8 | 5.75 | 5 | 19.88 |
| ASME 16.5 | 150 | 20 | 27.5 | 25 | 1 1/4 | 20 | 1 1/8 | 6.25 | 5.5 | 22 |
| ASME 16.5 | 150 | 22 | 29.5 | 27.25 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 24 |
| ASME 16.5 | 150 | 24 | 32 | 29.5 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 26.12 |
| ASME 16.5 | 300 | 1/2 | 3.75 | 2.62 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.5 |
| ASME 16.5 | 300 | 3/4 | 4.62 | 3.25 | 3/4 | 4 | 5/8 | 3 | 2.5 | 1.88 |
| ASME 16.5 | 300 | 1 | 4.88 | 3.5 | 3/4 | 4 | 5/8 | 3 | 2.5 | 2.12 |
| ASME 16.5 | 300 | 1 1/4 | 5.25 | 3.88 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 2.5 |
| ASME 16.5 | 300 | 1 1/2 | 6.12 | 4.5 | 7/8 | 4 | 3/4 | 3.5 | 3 | 2.75 |
| ASME 16.5 | 300 | 2 | 6.5 | 5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 3.31 |
| ASME 16.5 | 300 | 2 1/2 | 7.5 | 5.88 | 7/8 | 8 | 3/4 | 4 | 3.25 | 3.94 |
| ASME 16.5 | 300 | 3 | 8.25 | 6.62 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 4.62 |
| ASME 16.5 | 300 | 3 1/2 | 9 | 7.25 | 7/8 | 8 | 3/4 | 4.25 | 3.75 | 5.25 |
| ASME 16.5 | 300 | 4 | 10 | 7.88 | 7/8 | 8 | 3/4 | 4.5 | 3.75 | 5.75 |
| ASME 16.5 | 300 | 5 | 11 | 9.25 | 7/8 | 8 | 3/4 | 4.75 | 4.25 | 7 |
| ASME 16.5 | 300 | 6 | 12.5 | 10.62 | 7/8 | 12 | 3/4 | 4.75 | 4.25 | 8.12 |
| ASME 16.5 | 300 | 8 | 15 | 13 | 1 | 12 | 7/8 | 5.5 | 4.75 | 10.25 |
| ASME 16.5 | 300 | 10 | 17.5 | 15.25 | 1 1/8 | 16 | 1 | 6.25 | 5.5 | 12.62 |
| ASME 16.5 | 300 | 12 | 20.5 | 17.75 | 1 1/4 | 16 | 1 1/8 | 6.75 | 5.75 | 14.75 |
| ASME 16.5 | 300 | 14 | 23 | 20.25 | 1 1/4 | 20 | 1 1/8 | 7 | 6.25 | 16.75 |
| ASME 16.5 | 300 | 16 | 25.5 | 22.5 | 1 3/8 | 20 | 1 1/4 | 7.5 | 6.5 | 19 |
| ASME 16.5 | 300 | 18 | 28 | 24.75 | 1 3/8 | 24 | 1 1/4 | 7.75 | 6.75 | 21 |
| ASME 16.5 | 300 | 20 | 30.5 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 7.25 | 23.12 |
| ASME 16.5 | 300 | 22 | 33 | 29.25 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 25.25 |
| ASME 16.5 | 300 | 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 27.62 |
Tbl. 4.F.4

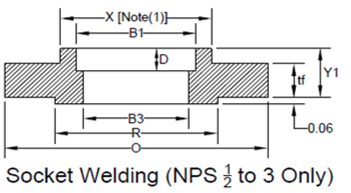

Socket Welding (NPS 1/2 to 3 Only) Steel Pipe Flanges per ASME B16.5 (Class 150, 300)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Depth of socket (D) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 150 | 1/2 | 3.5 | 2.38 | 5/8 | 4 | 1/2 | 2.25 | 2 | 1.19 | 0.38 |
| ASME 16.5 | 150 | 3/4 | 3.88 | 2.75 | 5/8 | 4 | 1/2 | 2.5 | 2 | 1.5 | 0.44 |
| ASME 16.5 | 150 | 1 | 4.25 | 3.12 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.94 | 0.5 |
| ASME 16.5 | 150 | 1 1/4 | 4.62 | 3.5 | 5/8 | 4 | 1/2 | 2.75 | 2.25 | 2.31 | 0.56 |
| ASME 16.5 | 150 | 1 1/2 | 5 | 3.88 | 5/8 | 4 | 1/2 | 2.75 | 2.5 | 2.56 | 0.62 |
| ASME 16.5 | 150 | 2 | 6 | 4.75 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 3.06 | 0.69 |
| ASME 16.5 | 150 | 2 1/2 | 7 | 5.5 | 3/4 | 4 | 5/8 | 3.5 | 3 | 3.56 | 0.75 |
| ASME 16.5 | 150 | 3 | 7.5 | 6 | 3/4 | 4 | 5/8 | 3.5 | 3 | 4.25 | 0.81 |
| ASME 16.5 | 150 | 3 1/2 | 8.5 | 7 | 3/4 | 8 | 5/8 | 3.5 | 3 | 4.81 | 0.88 |
| ASME 16.5 | 150 | 4 | 9 | 7.5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 5.31 | 0.94 |
| ASME 16.5 | 150 | 5 | 10 | 8.5 | 7/8 | 8 | 3/4 | 3.75 | 3.25 | 6.44 | 0.94 |
| ASME 16.5 | 150 | 6 | 11 | 9.5 | 7/8 | 8 | 3/4 | 4 | 3.25 | 7.56 | 1.6 |
| ASME 16.5 | 150 | 8 | 13.5 | 11.75 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 9.69 | 1.25 |
| ASME 16.5 | 150 | 10 | 16 | 14.25 | 1 | 12 | 7/8 | 4.5 | 4 | 12 | 1.31 |
| ASME 16.5 | 150 | 12 | 19 | 17 | 1 | 12 | 7/8 | 4.75 | 4 | 14.38 | 1.56 |
| ASME 16.5 | 150 | 14 | 21 | 18.75 | 1 1/8 | 12 | 1 | 5.25 | 4.5 | 15.75 | 1.63 |
| ASME 16.5 | 150 | 16 | 23.5 | 21.25 | 1 1/8 | 16 | 1 | 5.25 | 4.5 | 18 | 1.75 |
| ASME 16.5 | 150 | 18 | 25 | 22.75 | 1 1/4 | 16 | 1 1/8 | 5.75 | 5 | 19.88 | 1.94 |
| ASME 16.5 | 150 | 20 | 27.5 | 25 | 1 1/4 | 20 | 1 1/8 | 6.25 | 5.5 | 22 | 2.13 |
| ASME 16.5 | 150 | 22 | 29.5 | 27.25 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 24 | 2.38 |
| ASME 16.5 | 150 | 24 | 32 | 29.5 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 26.12 | 2.5 |
| ASME 16.5 | 300 | 1/2 | 3.75 | 2.62 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.5 | 0.38 |
| ASME 16.5 | 300 | 3/4 | 4.62 | 3.25 | 3/4 | 4 | 5/8 | 3 | 2.5 | 1.88 | 0.44 |
| ASME 16.5 | 300 | 1 | 4.88 | 3.5 | 3/4 | 4 | 5/8 | 3 | 2.5 | 2.12 | 0.5 |
| ASME 16.5 | 300 | 1 1/4 | 5.25 | 3.88 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 2.5 | 0.56 |
| ASME 16.5 | 300 | 1 1/2 | 6.12 | 4.5 | 7/8 | 4 | 3/4 | 3.5 | 3 | 2.75 | 0.62 |
| ASME 16.5 | 300 | 2 | 6.5 | 5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 3.31 | 0.69 |
| ASME 16.5 | 300 | 2 1/2 | 7.5 | 5.88 | 7/8 | 8 | 3/4 | 4 | 3.25 | 3.94 | 0.75 |
| ASME 16.5 | 300 | 3 | 8.25 | 6.62 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 4.62 | 0.81 |
| ASME 16.5 | 300 | 3 1/2 | 9 | 7.25 | 7/8 | 8 | 3/4 | 4.25 | 3.75 | 5.25 | … |
| ASME 16.5 | 300 | 4 | 10 | 7.88 | 7/8 | 8 | 3/4 | 4.5 | 3.75 | 5.75 | … |
| ASME 16.5 | 300 | 5 | 11 | 9.25 | 7/8 | 8 | 3/4 | 4.75 | 4.25 | 7 | … |
| ASME 16.5 | 300 | 6 | 12.5 | 10.62 | 7/8 | 12 | 3/4 | 4.75 | 4.25 | 8.12 | … |
| ASME 16.5 | 300 | 8 | 15 | 13 | 1 | 12 | 7/8 | 5.5 | 4.75 | 10.25 | … |
| ASME 16.5 | 300 | 10 | 17.5 | 15.25 | 1 1/8 | 16 | 1 | 6.25 | 5.5 | 12.62 | … |
| ASME 16.5 | 300 | 12 | 20.5 | 17.75 | 1 1/4 | 16 | 1 1/8 | 6.75 | 5.75 | 14.75 | … |
| ASME 16.5 | 300 | 14 | 23 | 20.25 | 1 1/4 | 20 | 1 1/8 | 7 | 6.25 | 16.75 | … |
| ASME 16.5 | 300 | 16 | 25.5 | 22.5 | 1 3/8 | 20 | 1 1/4 | 7.5 | 6.5 | 19 | … |
| ASME 16.5 | 300 | 18 | 28 | 24.75 | 1 3/8 | 24 | 1 1/4 | 7.75 | 6.75 | 21 | … |
| ASME 16.5 | 300 | 20 | 30.5 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 7.25 | 23.12 | … |
| ASME 16.5 | 300 | 22 | 33 | 29.25 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 25.25 | … |
| ASME 16.5 | 300 | 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 27.62 | … |
Tbl. 4.F.5

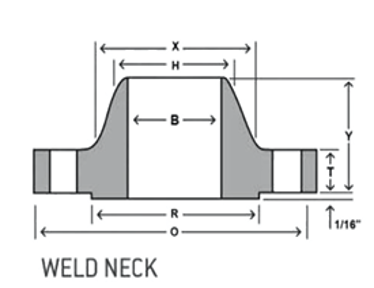

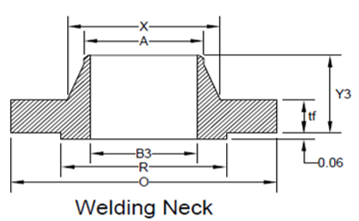

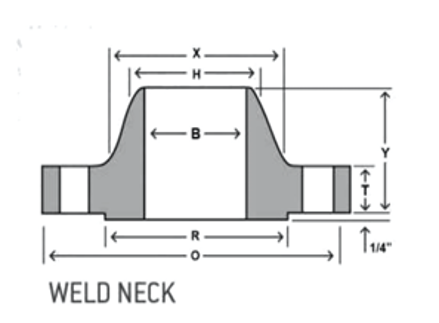

Welding Neck Steel Pipe Flanges per ASME B16.5 (Class 150, 300)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Diameter Beginning Chamfer Weld Neck (A) | Length Through Hub Bore Weld Neck (Y3) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 150 | 1/2 | 3.5 | 2.38 | 5/8 | 4 | 1/2 | 2.25 | 2 | 1.19 | 0.84 | 1.81 |
| ASME 16.5 | 150 | 3/4 | 3.88 | 2.75 | 5/8 | 4 | 1/2 | 2.5 | 2 | 1.5 | 1.05 | 2 |
| ASME 16.5 | 150 | 1 | 4.25 | 3.12 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.94 | 1.32 | 2.12 |
| ASME 16.5 | 150 | 1 1/4 | 4.62 | 3.5 | 5/8 | 4 | 1/2 | 2.75 | 2.25 | 2.31 | 1.66 | 2.19 |
| ASME 16.5 | 150 | 1 1/2 | 5 | 3.88 | 5/8 | 4 | 1/2 | 2.75 | 2.5 | 2.56 | 1.9 | 2.83 |
| ASME 16.5 | 150 | 2 | 6 | 4.75 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 3.06 | 2.38 | 2.44 |
| ASME 16.5 | 150 | 2 1/2 | 7 | 5.5 | 3/4 | 4 | 5/8 | 3.5 | 3 | 3.56 | 2.88 | 2.69 |
| ASME 16.5 | 150 | 3 | 7.5 | 6 | 3/4 | 4 | 5/8 | 3.5 | 3 | 4.25 | 3.5 | 2.69 |
| ASME 16.5 | 150 | 3 1/2 | 8.5 | 7 | 3/4 | 8 | 5/8 | 3.5 | 3 | 4.81 | 4 | 2.75 |
| ASME 16.5 | 150 | 4 | 9 | 7.5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 5.31 | 4.5 | 2.94 |
| ASME 16.5 | 150 | 5 | 10 | 8.5 | 7/8 | 8 | 3/4 | 3.75 | 3.25 | 6.44 | 5.56 | 3.44 |
| ASME 16.5 | 150 | 6 | 11 | 9.5 | 7/8 | 8 | 3/4 | 4 | 3.25 | 7.56 | 6.63 | 3.44 |
| ASME 16.5 | 150 | 8 | 13.5 | 11.75 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 9.69 | 8.63 | 3.94 |
| ASME 16.5 | 150 | 10 | 16 | 14.25 | 1 | 12 | 7/8 | 4.5 | 4 | 12 | 10.75 | 3.94 |
| ASME 16.5 | 150 | 12 | 19 | 17 | 1 | 12 | 7/8 | 4.75 | 4 | 14.38 | 12.75 | 4.44 |
| ASME 16.5 | 150 | 14 | 21 | 18.75 | 1 1/8 | 12 | 1 | 5.25 | 4.5 | 15.75 | 14 | 4.94 |
| ASME 16.5 | 150 | 16 | 23.5 | 21.25 | 1 1/8 | 16 | 1 | 5.25 | 4.5 | 18 | 16 | 4.94 |
| ASME 16.5 | 150 | 18 | 25 | 22.75 | 1 1/4 | 16 | 1 1/8 | 5.75 | 5 | 19.88 | 18 | 5.44 |
| ASME 16.5 | 150 | 20 | 27.5 | 25 | 1 1/4 | 20 | 1 1/8 | 6.25 | 5.5 | 22 | 20 | 5.62 |
| ASME 16.5 | 150 | 22 | 29.5 | 27.25 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 24 | 22 | 5.82 |
| ASME 16.5 | 150 | 24 | 32 | 29.5 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 26.12 | 24 | 5.94 |
| ASME 16.5 | 300 | 1/2 | 3.75 | 2.62 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.5 | 0.84 | 2 |
| ASME 16.5 | 300 | 3/4 | 4.62 | 3.25 | 3/4 | 4 | 5/8 | 3 | 2.5 | 1.88 | 1.05 | 2.19 |
| ASME 16.5 | 300 | 1 | 4.88 | 3.5 | 3/4 | 4 | 5/8 | 3 | 2.5 | 2.12 | 1.32 | 2.38 |
| ASME 16.5 | 300 | 1 1/4 | 5.25 | 3.88 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 2.5 | 1.66 | 2.5 |
| ASME 16.5 | 300 | 1 1/2 | 6.12 | 4.5 | 7/8 | 4 | 3/4 | 3.5 | 3 | 2.75 | 1.9 | 2.63 |
| ASME 16.5 | 300 | 2 | 6.5 | 5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 3.31 | 2.38 | 2.69 |
| ASME 16.5 | 300 | 2 1/2 | 7.5 | 5.88 | 7/8 | 8 | 3/4 | 4 | 3.25 | 3.94 | 2.88 | 2.94 |
| ASME 16.5 | 300 | 3 | 8.25 | 6.62 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 4.62 | 3.5 | 3.06 |
| ASME 16.5 | 300 | 3 1/2 | 9 | 7.25 | 7/8 | 8 | 3/4 | 4.25 | 3.75 | 5.25 | 4 | 3.13 |
| ASME 16.5 | 300 | 4 | 10 | 7.88 | 7/8 | 8 | 3/4 | 4.5 | 3.75 | 5.75 | 4.5 | 3.32 |
| ASME 16.5 | 300 | 5 | 11 | 9.25 | 7/8 | 8 | 3/4 | 4.75 | 4.25 | 7 | 5.56 | 3.82 |
| ASME 16.5 | 300 | 6 | 12.5 | 10.62 | 7/8 | 12 | 3/4 | 4.75 | 4.25 | 8.12 | 6.63 | 3.82 |
| ASME 16.5 | 300 | 8 | 15 | 13 | 1 | 12 | 7/8 | 5.5 | 4.75 | 10.25 | 8.63 | 4.32 |
| ASME 16.5 | 300 | 10 | 17.5 | 15.25 | 1 1/8 | 16 | 1 | 6.25 | 5.5 | 12.62 | 10.75 | 4.56 |
| ASME 16.5 | 300 | 12 | 20.5 | 17.75 | 1 1/4 | 16 | 1 1/8 | 6.75 | 5.75 | 14.75 | 12.75 | 5.06 |
| ASME 16.5 | 300 | 14 | 23 | 20.25 | 1 1/4 | 20 | 1 1/8 | 7 | 6.25 | 16.75 | 14 | 5.56 |
| ASME 16.5 | 300 | 16 | 25.5 | 22.5 | 1 3/8 | 20 | 1 1/4 | 7.5 | 6.5 | 19 | 16 | 5.69 |
| ASME 16.5 | 300 | 18 | 28 | 24.75 | 1 3/8 | 24 | 1 1/4 | 7.75 | 6.75 | 21 | 18 | 6.19 |
| ASME 16.5 | 300 | 20 | 30.5 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 7.25 | 23.12 | 20 | 6.32 |
| ASME 16.5 | 300 | 22 | 33 | 29.25 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 25.25 | 22 | 6.44 |
| ASME 16.5 | 300 | 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 27.62 | 24 | 6.56 |
Tbl. 4.F.6

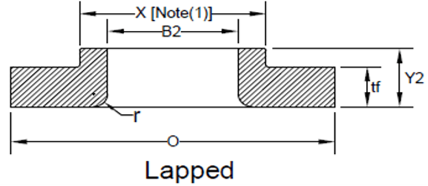

Lapped Steel Pipe Flanges per ASME B16.5 (Class 150, 300)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Min Thickness Lap Joint (tf) | Bore- Min Lapped (B2) | Length Through Hub- Lapped (Y2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 150 | 1/2 | 3.5 | 2.38 | 5/8 | 4 | 1/2 | 2.25 | 2 | 1.19 | 0.44 | 0.9 | 0.62 |
| ASME 16.5 | 150 | 3/4 | 3.88 | 2.75 | 5/8 | 4 | 1/2 | 2.5 | 2 | 1.5 | 0.5 | 1.11 | 0.62 |
| ASME 16.5 | 150 | 1 | 4.25 | 3.12 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.94 | 0.56 | 1.38 | 0.69 |
| ASME 16.5 | 150 | 1 1/4 | 4.62 | 3.5 | 5/8 | 4 | 1/2 | 2.75 | 2.25 | 2.31 | 0.62 | 1.72 | 0.81 |
| ASME 16.5 | 150 | 1 1/2 | 5 | 3.88 | 5/8 | 4 | 1/2 | 2.75 | 2.5 | 2.56 | 0.69 | 1.97 | 0.88 |
| ASME 16.5 | 150 | 2 | 6 | 4.75 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 3.06 | 0.75 | 2.46 | 1 |
| ASME 16.5 | 150 | 2 1/2 | 7 | 5.5 | 3/4 | 4 | 5/8 | 3.5 | 3 | 3.56 | 0.88 | 2.97 | 1.12 |
| ASME 16.5 | 150 | 3 | 7.5 | 6 | 3/4 | 4 | 5/8 | 3.5 | 3 | 4.25 | 0.94 | 3.6 | 1.19 |
| ASME 16.5 | 150 | 3 1/2 | 8.5 | 7 | 3/4 | 8 | 5/8 | 3.5 | 3 | 4.81 | 0.94 | 4.1 | 1.25 |
| ASME 16.5 | 150 | 4 | 9 | 7.5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 5.31 | 0.94 | 4.6 | 1.31 |
| ASME 16.5 | 150 | 5 | 10 | 8.5 | 7/8 | 8 | 3/4 | 3.75 | 3.25 | 6.44 | 0.94 | 5.69 | 1.44 |
| ASME 16.5 | 150 | 6 | 11 | 9.5 | 7/8 | 8 | 3/4 | 4 | 3.25 | 7.56 | 1 | 6.75 | 1.56 |
| ASME 16.5 | 150 | 8 | 13.5 | 11.75 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 9.69 | 1.12 | 8.75 | 1.75 |
| ASME 16.5 | 150 | 10 | 16 | 14.25 | 1 | 12 | 7/8 | 4.5 | 4 | 12 | 1.19 | 10.92 | 1.94 |
| ASME 16.5 | 150 | 12 | 19 | 17 | 1 | 12 | 7/8 | 4.75 | 4 | 14.38 | 1.25 | 12.92 | 2.19 |
| ASME 16.5 | 150 | 14 | 21 | 18.75 | 1 1/8 | 12 | 1 | 5.25 | 4.5 | 15.75 | 1.38 | 14.18 | 3.12 |
| ASME 16.5 | 150 | 16 | 23.5 | 21.25 | 1 1/8 | 16 | 1 | 5.25 | 4.5 | 18 | 1.44 | 16.19 | 3.44 |
| ASME 16.5 | 150 | 18 | 25 | 22.75 | 1 1/4 | 16 | 1 1/8 | 5.75 | 5 | 19.88 | 1.56 | 18.2 | 3.81 |
| ASME 16.5 | 150 | 20 | 27.5 | 25 | 1 1/4 | 20 | 1 1/8 | 6.25 | 5.5 | 22 | 1.69 | 20.25 | 4.06 |
| ASME 16.5 | 150 | 22 | 29.5 | 27.25 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 24 | 1.81 | 22.25 | 4.25 |
| ASME 16.5 | 150 | 24 | 32 | 29.5 | 1 3/8 | 20 | 1 1/4 | 6.75 | 6 | 26.12 | 1.88 | 24.25 | 4.38 |
| ASME 16.5 | 300 | 1/2 | 3.75 | 2.62 | 5/8 | 4 | 1/2 | 2.5 | 2.25 | 1.5 | 0.56 | 0.9 | 0.88 |
| ASME 16.5 | 300 | 3/4 | 4.62 | 3.25 | 3/4 | 4 | 5/8 | 3 | 2.5 | 1.88 | 0.62 | 1.11 | 1 |
| ASME 16.5 | 300 | 1 | 4.88 | 3.5 | 3/4 | 4 | 5/8 | 3 | 2.5 | 2.12 | 0.69 | 1.38 | 1.06 |
| ASME 16.5 | 300 | 1 1/4 | 5.25 | 3.88 | 3/4 | 4 | 5/8 | 3.25 | 2.75 | 2.5 | 0.75 | 1.72 | 1.06 |
| ASME 16.5 | 300 | 1 1/2 | 6.12 | 4.5 | 7/8 | 4 | 3/4 | 3.5 | 3 | 2.75 | 0.81 | 1.97 | 1.16 |
| ASME 16.5 | 300 | 2 | 6.5 | 5 | 3/4 | 8 | 5/8 | 3.5 | 3 | 3.31 | 0.88 | 2.46 | 1.31 |
| ASME 16.5 | 300 | 2 1/2 | 7.5 | 5.88 | 7/8 | 8 | 3/4 | 4 | 3.25 | 3.94 | 1 | 2.97 | 1.5 |
| ASME 16.5 | 300 | 3 | 8.25 | 6.62 | 7/8 | 8 | 3/4 | 4.25 | 3.5 | 4.62 | 1.12 | 3.6 | 1.69 |
| ASME 16.5 | 300 | 3 1/2 | 9 | 7.25 | 7/8 | 8 | 3/4 | 4.25 | 3.75 | 5.25 | 1.19 | 4.1 | 1.75 |
| ASME 16.5 | 300 | 4 | 10 | 7.88 | 7/8 | 8 | 3/4 | 4.5 | 3.75 | 5.75 | 1.25 | 4.6 | 1.88 |
| ASME 16.5 | 300 | 5 | 11 | 9.25 | 7/8 | 8 | 3/4 | 4.75 | 4.25 | 7 | 1.38 | 5.69 | 2 |
| ASME 16.5 | 300 | 6 | 12.5 | 10.62 | 7/8 | 12 | 3/4 | 4.75 | 4.25 | 8.12 | 1.44 | 6.75 | 2.06 |
| ASME 16.5 | 300 | 8 | 15 | 13 | 1 | 12 | 7/8 | 5.5 | 4.75 | 10.25 | 1.62 | 8.75 | 2.44 |
| ASME 16.5 | 300 | 10 | 17.5 | 15.25 | 1 1/8 | 16 | 1 | 6.25 | 5.5 | 12.62 | 1.88 | 10.92 | 3.75 |
| ASME 16.5 | 300 | 12 | 20.5 | 17.75 | 1 1/4 | 16 | 1 1/8 | 6.75 | 5.75 | 14.75 | 2 | 12.92 | 4 |
| ASME 16.5 | 300 | 14 | 23 | 20.25 | 1 1/4 | 20 | 1 1/8 | 7 | 6.25 | 16.75 | 2.12 | 14.18 | 4.38 |
| ASME 16.5 | 300 | 16 | 25.5 | 22.5 | 1 3/8 | 20 | 1 1/4 | 7.5 | 6.5 | 19 | 2.25 | 16.19 | 4.75 |
| ASME 16.5 | 300 | 18 | 28 | 24.75 | 1 3/8 | 24 | 1 1/4 | 7.75 | 6.75 | 21 | 2.38 | 18.2 | 5.12 |
| ASME 16.5 | 300 | 20 | 30.5 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 7.25 | 23.12 | 2.5 | 20.25 | 5.5 |
| ASME 16.5 | 300 | 22 | 33 | 29.25 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 25.25 | 2.62 | 22.25 | 5.69 |
| ASME 16.5 | 300 | 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 8 | 27.62 | 2.75 | 24.25 | 6 |
Tbl. 4.F.7
Notes:
- Refer to ANSI/ASME B16.5 for notes, pressures, and minimum design requirements.
- Any column with "-" relate to a note in the standard or is not be covered in the standard.
- Data columns from the reference standard may have been omitted.
- US units are inches, Metric Units are millimeters.
- Studs are measured parallel to the axis (L) from the first to the thread without the chamfers (points).
- Hex bolts are measured from under the head to the top of the bolt.
Threaded Steel Pipe Flanges per ASME B16.5 (Class 400-2500)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Min Thickness Flange (tf) | Min Thread Length Threaded (T) | Min Counterbore Threaded Flange (Q) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 400 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | - | - | 1.5 | 0.56 | 0.62 | - |
| ASME 16.5 | 400 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | - | - | 1.88 | 0.62 | 0.62 | - |
| ASME 16.5 | 400 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | - | - | 2.12 | 0.69 | 0.69 | - |
| ASME 16.5 | 400 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | - | - | 2.5 | 0.81 | 0.81 | - |
| ASME 16.5 | 400 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | - | - | 2.75 | 0.88 | 0.88 | - |
| ASME 16.5 | 400 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | - | - | 3.31 | 1 | 1.12 | - |
| ASME 16.5 | 400 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | - | - | 3.94 | 1.12 | 1.25 | - |
| ASME 16.5 | 400 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | - | - | 4.62 | 1.25 | 1.38 | - |
| ASME 16.5 | 400 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | - | - | 5.25 | 1.38 | 1.56 | - |
| ASME 16.5 | 400 | 4 | 10 | 7.88 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.75 | 1.38 | 1.44 | 4.63 |
| ASME 16.5 | 400 | 5 | 11 | 9.25 | 1 | 8 | 0.88 | 5.75 | 5.25 | 7 | 1.5 | 1.69 | 5.69 |
| ASME 16.5 | 400 | 6 | 12.5 | 10.62 | 1 | 12 | 0.88 | 6 | 5.75 | 8.12 | 1.62 | 1.81 | 6.75 |
| ASME 16.5 | 400 | 8 | 15 | 13 | 1.13 | 12 | 1 | 6.75 | 6.5 | 10.25 | 1.88 | 2 | 8.75 |
| ASME 16.5 | 400 | 10 | 17.5 | 15.25 | 1.25 | 16 | 1.13 | 7.5 | 7.25 | 12.62 | 2.12 | 2.19 | 10.88 |
| ASME 16.5 | 400 | 12 | 20.5 | 17.75 | 1.38 | 16 | 1.25 | 8 | 7.75 | 14.75 | 2.25 | 2.38 | 12.94 |
| ASME 16.5 | 400 | 14 | 23 | 20.25 | 1.38 | 20 | 1.25 | 8.25 | 8 | 16.75 | 2.38 | 2.5 | 14.19 |
| ASME 16.5 | 400 | 16 | 25.5 | 23 | 1.5 | 20 | 1.38 | 8.75 | 8.5 | 19 | 2.5 | 2.69 | 16.19 |
| ASME 16.5 | 400 | 18 | 28 | 24.75 | 1.5 | 24 | 1.38 | 9 | 8.75 | 21 | 2.62 | 2.75 | 18.19 |
| ASME 16.5 | 400 | 20 | 30.5 | 27 | 1.63 | 24 | 1.5 | 9.5 | 9.25 | 23.12 | 2.75 | 2.88 | 20.19 |
| ASME 16.5 | 400 | 22 | 33 | 29.25 | 1.75 | 24 | 1.63 | 10 | 9.75 | 25.25 | 2.88 | … | … |
| ASME 16.5 | 400 | 24 | 36 | 32 | 1.88 | 24 | 1.75 | 10.5 | 10.25 | 27.62 | 3 | 3.25 | 24.19 |
| ASME 16.5 | 600 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | 3 | 2.75 | 1.5 | 0.56 | 0.62 | 0.93 |
| ASME 16.5 | 600 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 1.88 | 0.62 | 0.62 | 1.14 |
| ASME 16.5 | 600 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 2.12 | 0.69 | 0.69 | 1.41 |
| ASME 16.5 | 600 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | 3.75 | 3.5 | 2.5 | 0.81 | 0.81 | 1.75 |
| ASME 16.5 | 600 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | 4.25 | 4 | 2.75 | 0.88 | 0.88 | 1.99 |
| ASME 16.5 | 600 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | 4.25 | 4 | 3.31 | 1 | 1.12 | 0.25 |
| ASME 16.5 | 600 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | 4.75 | 4.5 | 3.94 | 1.12 | 1.25 | 3 |
| ASME 16.5 | 600 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | 5 | 4.75 | 4.62 | 1.25 | 1.38 | 3.63 |
| ASME 16.5 | 600 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.25 | 1.38 | 1.56 | 4.13 |
| ASME 16.5 | 600 | 4 | 10.75 | 8.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 6 | 1.5 | 1.62 | 4.63 |
| ASME 16.5 | 600 | 5 | 13 | 10.5 | 1.13 | 8 | 1 | 6.5 | 6.25 | 7.44 | 1.75 | 1.88 | 5.69 |
| ASME 16.5 | 600 | 6 | 14 | 11.5 | 1.13 | 12 | 1 | 6.75 | 6.5 | 8.75 | 1.88 | 2 | 6.75 |
| ASME 16.5 | 600 | 8 | 16.5 | 13.75 | 1.25 | 12 | 1.13 | 7.5 | 7.25 | 10.75 | 2.19 | 2.25 | 8.75 |
| ASME 16.5 | 600 | 10 | 20 | 17 | 1.38 | 16 | 1.25 | 8.5 | 8.25 | 13.5 | 2.5 | 2.56 | 10.88 |
| ASME 16.5 | 600 | 12 | 22 | 19.25 | 1.38 | 20 | 1.25 | 8.75 | 8.5 | 15.75 | 2.62 | 2.75 | 12.94 |
| ASME 16.5 | 600 | 14 | 23.75 | 20.75 | 1.5 | 20 | 1.38 | 9.25 | 9 | 17 | 2.75 | 2.88 | 14.19 |
| ASME 16.5 | 600 | 16 | 27 | 23.75 | 1.63 | 20 | 1.5 | 10 | 9.75 | 19.5 | 3 | 3.06 | 16.19 |
| ASME 16.5 | 600 | 18 | 29.25 | 25.75 | 1.75 | 20 | 1.63 | 10.75 | 10.5 | 21.5 | 3.25 | 3.12 | 18.19 |
| ASME 16.5 | 600 | 20 | 32 | 28.5 | 1.75 | 24 | 1.63 | 11.25 | 11 | 24 | 3.5 | 3.25 | 20.19 |
| ASME 16.5 | 600 | 22 | 34.25 | 30.62 | 1.88 | 24 | 1.75 | 12 | … | 26.25 | 3.75 | … | … |
| ASME 16.5 | 600 | 24 | 37 | 33 | 2 | 24 | 1.88 | 13 | 12.75 | 28.25 | 4 | 3.62 | 24.19 |
| ASME 16.5 | 900 | 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3/4 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/4 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3 | 9.5 | 7.5 | 1 | 8 | 0.88 | 5.75 | 5.75 | 5 | 1.5 | 1.62 | 3.63 |
| ASME 16.5 | 900 | 4 | 11.5 | 9.25 | 1.25 | 8 | 1.13 | 6.75 | 6.75 | 6.25 | 1.75 | 1.88 | 4.63 |
| ASME 16.5 | 900 | 5 | 13.75 | 11 | 1.38 | 8 | 1.25 | 7.5 | 7.5 | 7.5 | 2 | 2.12 | 5.69 |
| ASME 16.5 | 900 | 6 | 15 | 12.5 | 1.25 | 12 | 1.13 | 7.5 | 7.75 | 9.25 | 2.19 | 2.25 | 6.75 |
| ASME 16.5 | 900 | 8 | 18.5 | 15.5 | 1.5 | 12 | 1.38 | 8.75 | 8.75 | 11.75 | 2.5 | 2.5 | 8.75 |
| ASME 16.5 | 900 | 10 | 21.5 | 18.5 | 1.5 | 16 | 1.38 | 9.25 | 9.25 | 14.5 | 2.75 | 2.81 | 10.88 |
| ASME 16.5 | 900 | 12 | 24 | 21 | 1.5 | 20 | 1.38 | 10 | 10 | 16.5 | 3.12 | 3 | 12.94 |
| ASME 16.5 | 900 | 14 | 25.25 | 22 | 1.63 | 20 | 1.5 | 10.75 | 11 | 17.75 | 3.38 | 3.25 | 14.19 |
| ASME 16.5 | 900 | 16 | 27.75 | 24.25 | 1.75 | 20 | 1.63 | 11.25 | 11.5 | 20 | 3.5 | 3.38 | 16.19 |
| ASME 16.5 | 900 | 18 | 31 | 27 | 2 | 20 | 1.88 | 12.75 | 13.25 | 22.25 | 4 | 3.5 | 18.19 |
| ASME 16.5 | 900 | 20 | 33.75 | 29.5 | 2.13 | 20 | 2 | 13.75 | 14.25 | 24.5 | 4.25 | 3.62 | 20.19 |
| ASME 16.5 | 900 | 24 | 41 | 35.5 | 2.63 | 20 | 2.5 | 17.25 | 18 | 29.5 | 5.5 | 4 | 24.19 |
| ASME 16.5 | 1500 | 1/2 | 4.75 | 3.25 | 0.88 | 4 | 0.75 | 4.25 | 4 | 1.5 | 0.88 | 0.88 | 0.93 |
| ASME 16.5 | 1500 | 3/4 | 5.12 | 3.5 | 0.88 | 4 | 0.75 | 4.5 | 4.25 | 1.75 | 1 | 1 | 1.14 |
| ASME 16.5 | 1500 | 1 | 5.88 | 4 | 1 | 4 | 0.88 | 5 | 4.75 | 2.06 | 1.12 | 1.12 | 1.41 |
| ASME 16.5 | 1500 | 1 1/4 | 6.25 | 4.38 | 1 | 4 | 0.88 | 5 | 4.75 | 2.5 | 1.12 | 1.19 | 1.75 |
| ASME 16.5 | 1500 | 1 1/2 | 7 | 4.88 | 1.13 | 4 | 1 | 5.5 | 5.25 | 2.75 | 1.25 | 1.25 | 1.99 |
| ASME 16.5 | 1500 | 2 | 8.5 | 6.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 4.12 | 1.5 | 1.5 | 2.5 |
| ASME 16.5 | 1500 | 2 1/2 | 9.62 | 7.5 | 1.13 | 8 | 1 | 6.25 | 6 | 4.88 | 1.62 | 1.88 | 3 |
| ASME 16.5 | 1500 | 3 | 10.5 | 8 | 1.13 | 8 | 1.13 | 7 | 6.75 | 5.25 | 1.88 | … | … |
| ASME 16.5 | 1500 | 4 | 12.25 | 9.5 | 1.38 | 8 | 1.25 | 7.75 | 7.5 | 6.38 | 2.12 | … | … |
| ASME 16.5 | 1500 | 5 | 14.75 | 11.5 | 1.63 | 8 | 1.5 | 9.75 | 9.5 | 7.75 | 2.88 | … | … |
| ASME 16.5 | 1500 | 6 | 15.5 | 12.5 | 1.5 | 12 | 1.38 | 10.25 | 10 | 9 | 3.25 | … | … |
| ASME 16.5 | 1500 | 8 | 19 | 15.5 | 1.75 | 12 | 1.63 | 11.5 | 11.25 | 11.5 | 3.62 | … | … |
| ASME 16.5 | 1500 | 10 | 23 | 19 | 2 | 12 | 1.88 | 13.25 | 13 | 14.5 | 4.25 | … | … |
| ASME 16.5 | 1500 | 12 | 26.5 | 22.5 | 2.13 | 16 | 2 | 14.75 | 14.5 | 17.75 | 4.88 | … | … |
| ASME 16.5 | 1500 | 14 | 29.5 | 25 | 2.38 | 16 | 2.25 | 16 | 15.75 | 19.5 | 5.25 | … | … |
| ASME 16.5 | 1500 | 16 | 32.5 | 27.75 | 2.63 | 16 | 2.5 | 17.5 | 17.25 | 21.75 | 5.75 | … | … |
| ASME 16.5 | 1500 | 18 | 36 | 30.5 | 2.88 | 16 | 2.75 | 19.5 | 19.25 | 23.5 | 6.38 | … | … |
| ASME 16.5 | 1500 | 20 | 38.75 | 32.75 | 3.13 | 16 | 3 | 21.25 | 21 | 25.25 | 7 | … | … |
| ASME 16.5 | 1500 | 24 | 46 | 39 | 3.63 | 16 | 3 | 24.25 | 24 | 30 | 8 | … | … |
| ASME 16.5 | 2500 | 1/2 | 5.25 | 3.5 | 0.88 | 4 | 0.75 | 4.75 | 4.5 | 1.69 | 1.19 | 1.12 | 0.93 |
| ASME 16.5 | 2500 | 3/4 | 5.5 | 3.75 | 0.88 | 4 | 0.75 | 5 | 4.75 | 2 | 1.25 | 1.25 | 1.14 |
| ASME 16.5 | 2500 | 1 | 6.25 | 4.25 | 1 | 4 | 0.88 | 5.5 | 5.25 | 2.25 | 1.38 | 1.38 | 1.41 |
| ASME 16.5 | 2500 | 1 1/4 | 7.25 | 5.12 | 1.13 | 4 | 1 | 6 | 5.75 | 2.88 | 1.5 | 1.5 | 1.75 |
| ASME 16.5 | 2500 | 1 1/2 | 8 | 5.75 | 1.25 | 4 | 1.13 | 6.75 | 6.5 | 3.12 | 1.75 | 1.75 | 1.99 |
| ASME 16.5 | 2500 | 2 | 9.25 | 6.75 | 1.13 | 8 | 1 | 7 | 6.75 | 3.75 | 2 | 2 | 2.5 |
| ASME 16.5 | 2500 | 2 1/2 | 10.5 | 7.75 | 1.25 | 8 | 1.13 | 7.75 | 7.5 | 4.5 | 2.25 | 2.25 | 3 |
| ASME 16.5 | 2500 | 3 | 12 | 9 | 1.38 | 8 | 1.25 | 8.75 | 8.5 | 5.25 | 2.62 | … | … |
| ASME 16.5 | 2500 | 4 | 14 | 10.75 | 1.63 | 8 | 1.5 | 10 | 9.75 | 6.5 | 3 | … | … |
| ASME 16.5 | 2500 | 5 | 16.5 | 12.75 | 1.88 | 8 | 1.75 | 11.75 | 11.5 | 8 | 3.62 | … | … |
| ASME 16.5 | 2500 | 6 | 19 | 14.5 | 2.13 | 8 | 2 | 13.5 | 13.25 | 9.25 | 4.25 | … | … |
| ASME 16.5 | 2500 | 8 | 21.75 | 17.25 | 2.13 | 12 | 2 | 15 | 14.75 | 12 | 5 | … | … |
| ASME 16.5 | 2500 | 10 | 26.5 | 21.25 | 2.63 | 12 | 2.5 | 19.25 | 19 | 14.75 | 6.5 | … | … |
| ASME 16.5 | 2500 | 12 | 30 | 24.38 | 2.88 | 12 | 2.75 | 21.25 | 21 | 17.38 | 7.25 | … | … |
Tbl. 4.F.8
Slip-On Welding Steel Pipe Flanges per ASME B16.5 (Class 400-2500)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Min Thickness Flange (tf) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 400 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | - | - | 1.5 | 0.56 |
| ASME 16.5 | 400 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | - | - | 1.88 | 0.62 |
| ASME 16.5 | 400 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | - | - | 2.12 | 0.69 |
| ASME 16.5 | 400 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | - | - | 2.5 | 0.81 |
| ASME 16.5 | 400 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | - | - | 2.75 | 0.88 |
| ASME 16.5 | 400 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | - | - | 3.31 | 1 |
| ASME 16.5 | 400 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | - | - | 3.94 | 1.12 |
| ASME 16.5 | 400 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | - | - | 4.62 | 1.25 |
| ASME 16.5 | 400 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | - | - | 5.25 | 1.38 |
| ASME 16.5 | 400 | 4 | 10 | 7.88 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.75 | 1.38 |
| ASME 16.5 | 400 | 5 | 11 | 9.25 | 1 | 8 | 0.88 | 5.75 | 5.25 | 7 | 1.5 |
| ASME 16.5 | 400 | 6 | 12.5 | 10.62 | 1 | 12 | 0.88 | 6 | 5.75 | 8.12 | 1.62 |
| ASME 16.5 | 400 | 8 | 15 | 13 | 1.13 | 12 | 1 | 6.75 | 6.5 | 10.25 | 1.88 |
| ASME 16.5 | 400 | 10 | 17.5 | 15.25 | 1.25 | 16 | 1.13 | 7.5 | 7.25 | 12.62 | 2.12 |
| ASME 16.5 | 400 | 12 | 20.5 | 17.75 | 1.38 | 16 | 1.25 | 8 | 7.75 | 14.75 | 2.25 |
| ASME 16.5 | 400 | 14 | 23 | 20.25 | 1.38 | 20 | 1.25 | 8.25 | 8 | 16.75 | 2.38 |
| ASME 16.5 | 400 | 16 | 25.5 | 23 | 1.5 | 20 | 1.38 | 8.75 | 8.5 | 19 | 2.5 |
| ASME 16.5 | 400 | 18 | 28 | 24.75 | 1.5 | 24 | 1.38 | 9 | 8.75 | 21 | 2.62 |
| ASME 16.5 | 400 | 20 | 30.5 | 27 | 1.63 | 24 | 1.5 | 9.5 | 9.25 | 23.12 | 2.75 |
| ASME 16.5 | 400 | 22 | 33 | 29.25 | 1.75 | 24 | 1.63 | 10 | 9.75 | 25.25 | 2.88 |
| ASME 16.5 | 400 | 24 | 36 | 32 | 1.88 | 24 | 1.75 | 10.5 | 10.25 | 27.62 | 3 |
| ASME 16.5 | 600 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | 3 | 2.75 | 1.5 | 0.56 |
| ASME 16.5 | 600 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 1.88 | 0.62 |
| ASME 16.5 | 600 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 2.12 | 0.69 |
| ASME 16.5 | 600 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | 3.75 | 3.5 | 2.5 | 0.81 |
| ASME 16.5 | 600 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | 4.25 | 4 | 2.75 | 0.88 |
| ASME 16.5 | 600 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | 4.25 | 4 | 3.31 | 1 |
| ASME 16.5 | 600 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | 4.75 | 4.5 | 3.94 | 1.12 |
| ASME 16.5 | 600 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | 5 | 4.75 | 4.62 | 1.25 |
| ASME 16.5 | 600 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.25 | 1.38 |
| ASME 16.5 | 600 | 4 | 10.75 | 8.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 6 | 1.5 |
| ASME 16.5 | 600 | 5 | 13 | 10.5 | 1.13 | 8 | 1 | 6.5 | 6.25 | 7.44 | 1.75 |
| ASME 16.5 | 600 | 6 | 14 | 11.5 | 1.13 | 12 | 1 | 6.75 | 6.5 | 8.75 | 1.88 |
| ASME 16.5 | 600 | 8 | 16.5 | 13.75 | 1.25 | 12 | 1.13 | 7.5 | 7.25 | 10.75 | 2.19 |
| ASME 16.5 | 600 | 10 | 20 | 17 | 1.38 | 16 | 1.25 | 8.5 | 8.25 | 13.5 | 2.5 |
| ASME 16.5 | 600 | 12 | 22 | 19.25 | 1.38 | 20 | 1.25 | 8.75 | 8.5 | 15.75 | 2.62 |
| ASME 16.5 | 600 | 14 | 23.75 | 20.75 | 1.5 | 20 | 1.38 | 9.25 | 9 | 17 | 2.75 |
| ASME 16.5 | 600 | 16 | 27 | 23.75 | 1.63 | 20 | 1.5 | 10 | 9.75 | 19.5 | 3 |
| ASME 16.5 | 600 | 18 | 29.25 | 25.75 | 1.75 | 20 | 1.63 | 10.75 | 10.5 | 21.5 | 3.25 |
| ASME 16.5 | 600 | 20 | 32 | 28.5 | 1.75 | 24 | 1.63 | 11.25 | 11 | 24 | 3.5 |
| ASME 16.5 | 600 | 22 | 34.25 | 30.62 | 1.88 | 24 | 1.75 | 12 | … | 26.25 | 3.75 |
| ASME 16.5 | 600 | 24 | 37 | 33 | 2 | 24 | 1.88 | 13 | 12.75 | 28.25 | 4 |
| ASME 16.5 | 900 | 1/2 | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3/4 | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/4 | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/2 | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 1/2 | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3 | 9.5 | 7.5 | 1 | 8 | 0.88 | 5.75 | 5.75 | 5 | 1.5 |
| ASME 16.5 | 900 | 4 | 11.5 | 9.25 | 1.25 | 8 | 1.13 | 6.75 | 6.75 | 6.25 | 1.75 |
| ASME 16.5 | 900 | 5 | 13.75 | 11 | 1.38 | 8 | 1.25 | 7.5 | 7.5 | 7.5 | 2 |
| ASME 16.5 | 900 | 6 | 15 | 12.5 | 1.25 | 12 | 1.13 | 7.5 | 7.75 | 9.25 | 2.19 |
| ASME 16.5 | 900 | 8 | 18.5 | 15.5 | 1.5 | 12 | 1.38 | 8.75 | 8.75 | 11.75 | 2.5 |
| ASME 16.5 | 900 | 10 | 21.5 | 18.5 | 1.5 | 16 | 1.38 | 9.25 | 9.25 | 14.5 | 2.75 |
| ASME 16.5 | 900 | 12 | 24 | 21 | 1.5 | 20 | 1.38 | 10 | 10 | 16.5 | 3.12 |
| ASME 16.5 | 900 | 14 | 25.25 | 22 | 1.63 | 20 | 1.5 | 10.75 | 11 | 17.75 | 3.38 |
| ASME 16.5 | 900 | 16 | 27.75 | 24.25 | 1.75 | 20 | 1.63 | 11.25 | 11.5 | 20 | 3.5 |
| ASME 16.5 | 900 | 18 | 31 | 27 | 2 | 20 | 1.88 | 12.75 | 13.25 | 22.25 | 4 |
| ASME 16.5 | 900 | 20 | 33.75 | 29.5 | 2.13 | 20 | 2 | 13.75 | 14.25 | 24.5 | 4.25 |
| ASME 16.5 | 900 | 24 | 41 | 35.5 | 2.63 | 20 | 2.5 | 17.25 | 18 | 29.5 | 5.5 |
| ASME 16.5 | 1500 | 1/2 | 4.75 | 3.25 | 0.88 | 4 | 0.75 | 4.25 | 4 | 1.5 | 0.88 |
| ASME 16.5 | 1500 | 3/4 | 5.12 | 3.5 | 0.88 | 4 | 0.75 | 4.5 | 4.25 | 1.75 | 1 |
| ASME 16.5 | 1500 | 1 | 5.88 | 4 | 1 | 4 | 0.88 | 5 | 4.75 | 2.06 | 1.12 |
| ASME 16.5 | 1500 | 1 1/4 | 6.25 | 4.38 | 1 | 4 | 0.88 | 5 | 4.75 | 2.5 | 1.12 |
| ASME 16.5 | 1500 | 1 1/2 | 7 | 4.88 | 1.13 | 4 | 1 | 5.5 | 5.25 | 2.75 | 1.25 |
| ASME 16.5 | 1500 | 2 | 8.5 | 6.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 4.12 | 1.5 |
| ASME 16.5 | 1500 | 2 1/2 | 9.62 | 7.5 | 1.13 | 8 | 1 | 6.25 | 6 | 4.88 | 1.62 |
| ASME 16.5 | 1500 | 3 | 10.5 | 8 | 1.13 | 8 | 1.13 | 7 | 6.75 | 5.25 | 1.88 |
| ASME 16.5 | 1500 | 4 | 12.25 | 9.5 | 1.38 | 8 | 1.25 | 7.75 | 7.5 | 6.38 | 2.12 |
| ASME 16.5 | 1500 | 5 | 14.75 | 11.5 | 1.63 | 8 | 1.5 | 9.75 | 9.5 | 7.75 | 2.88 |
| ASME 16.5 | 1500 | 6 | 15.5 | 12.5 | 1.5 | 12 | 1.38 | 10.25 | 10 | 9 | 3.25 |
| ASME 16.5 | 1500 | 8 | 19 | 15.5 | 1.75 | 12 | 1.63 | 11.5 | 11.25 | 11.5 | 3.62 |
| ASME 16.5 | 1500 | 10 | 23 | 19 | 2 | 12 | 1.88 | 13.25 | 13 | 14.5 | 4.25 |
| ASME 16.5 | 1500 | 12 | 26.5 | 22.5 | 2.13 | 16 | 2 | 14.75 | 14.5 | 17.75 | 4.88 |
| ASME 16.5 | 1500 | 14 | 29.5 | 25 | 2.38 | 16 | 2.25 | 16 | 15.75 | 19.5 | 5.25 |
| ASME 16.5 | 1500 | 16 | 32.5 | 27.75 | 2.63 | 16 | 2.5 | 17.5 | 17.25 | 21.75 | 5.75 |
| ASME 16.5 | 1500 | 18 | 36 | 30.5 | 2.88 | 16 | 2.75 | 19.5 | 19.25 | 23.5 | 6.38 |
| ASME 16.5 | 1500 | 20 | 38.75 | 32.75 | 3.13 | 16 | 3 | 21.25 | 21 | 25.25 | 7 |
| ASME 16.5 | 1500 | 24 | 46 | 39 | 3.63 | 16 | 3 | 24.25 | 24 | 30 | 8 |
| ASME 16.5 | 2500 | 1/2 | 5.25 | 3.5 | 0.88 | 4 | 0.75 | 4.75 | 4.5 | 1.69 | 1.19 |
| ASME 16.5 | 2500 | 3/4 | 5.5 | 3.75 | 0.88 | 4 | 0.75 | 5 | 4.75 | 2 | 1.25 |
| ASME 16.5 | 2500 | 1 | 6.25 | 4.25 | 1 | 4 | 0.88 | 5.5 | 5.25 | 2.25 | 1.38 |
| ASME 16.5 | 2500 | 1 1/4 | 7.25 | 5.12 | 1.13 | 4 | 1 | 6 | 5.75 | 2.88 | 1.5 |
| ASME 16.5 | 2500 | 1 1/2 | 8 | 5.75 | 1.25 | 4 | 1.13 | 6.75 | 6.5 | 3.12 | 1.75 |
| ASME 16.5 | 2500 | 2 | 9.25 | 6.75 | 1.13 | 8 | 1 | 7 | 6.75 | 3.75 | 2 |
| ASME 16.5 | 2500 | 2 1/2 | 10.5 | 7.75 | 1.25 | 8 | 1.13 | 7.75 | 7.5 | 4.5 | 2.25 |
| ASME 16.5 | 2500 | 3 | 12 | 9 | 1.38 | 8 | 1.25 | 8.75 | 8.5 | 5.25 | 2.62 |
| ASME 16.5 | 2500 | 4 | 14 | 10.75 | 1.63 | 8 | 1.5 | 10 | 9.75 | 6.5 | 3 |
| ASME 16.5 | 2500 | 5 | 16.5 | 12.75 | 1.88 | 8 | 1.75 | 11.75 | 11.5 | 8 | 3.62 |
| ASME 16.5 | 2500 | 6 | 19 | 14.5 | 2.13 | 8 | 2 | 13.5 | 13.25 | 9.25 | 4.25 |
| ASME 16.5 | 2500 | 8 | 21.75 | 17.25 | 2.13 | 12 | 2 | 15 | 14.75 | 12 | 5 |
| ASME 16.5 | 2500 | 10 | 26.5 | 21.25 | 2.63 | 12 | 2.5 | 19.25 | 19 | 14.75 | 6.5 |
| ASME 16.5 | 2500 | 12 | 30 | 24.38 | 2.88 | 12 | 2.75 | 21.25 | 21 | 17.38 | 7.25 |
Tbl. 4.F.9
Socket Welding (NPS 1/2 to 3 Only) Steel Pipe Flanges per ASME B16.5 (Class 400-2500)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Min Thickness Flange (tf) | Depth of socket (D) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 400 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | - | - | 1.5 | 0.56 | 0.38 |
| ASME 16.5 | 400 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | - | - | 1.88 | 0.62 | 0.44 |
| ASME 16.5 | 400 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | - | - | 2.12 | 0.69 | 0.5 |
| ASME 16.5 | 400 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | - | - | 2.5 | 0.81 | 0.56 |
| ASME 16.5 | 400 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | - | - | 2.75 | 0.88 | 0.62 |
| ASME 16.5 | 400 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | - | - | 3.31 | 1 | 0.69 |
| ASME 16.5 | 400 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | - | - | 3.94 | 1.12 | 0.75 |
| ASME 16.5 | 400 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | - | - | 4.62 | 1.25 | 0.81 |
| ASME 16.5 | 400 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | - | - | 5.25 | 1.38 | - |
| ASME 16.5 | 400 | 4 | 10 | 7.88 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.75 | 1.38 | - |
| ASME 16.5 | 400 | 5 | 11 | 9.25 | 1 | 8 | 0.88 | 5.75 | 5.25 | 7 | 1.5 | - |
| ASME 16.5 | 400 | 6 | 12.5 | 10.62 | 1 | 12 | 0.88 | 6 | 5.75 | 8.12 | 1.62 | - |
| ASME 16.5 | 400 | 8 | 15 | 13 | 1.13 | 12 | 1 | 6.75 | 6.5 | 10.25 | 1.88 | - |
| ASME 16.5 | 400 | 10 | 17.5 | 15.25 | 1.25 | 16 | 1.13 | 7.5 | 7.25 | 12.62 | 2.12 | - |
| ASME 16.5 | 400 | 12 | 20.5 | 17.75 | 1.38 | 16 | 1.25 | 8 | 7.75 | 14.75 | 2.25 | - |
| ASME 16.5 | 400 | 14 | 23 | 20.25 | 1.38 | 20 | 1.25 | 8.25 | 8 | 16.75 | 2.38 | - |
| ASME 16.5 | 400 | 16 | 25.5 | 23 | 1.5 | 20 | 1.38 | 8.75 | 8.5 | 19 | 2.5 | - |
| ASME 16.5 | 400 | 18 | 28 | 24.75 | 1.5 | 24 | 1.38 | 9 | 8.75 | 21 | 2.62 | - |
| ASME 16.5 | 400 | 20 | 30.5 | 27 | 1.63 | 24 | 1.5 | 9.5 | 9.25 | 23.12 | 2.75 | - |
| ASME 16.5 | 400 | 22 | 33 | 29.25 | 1.75 | 24 | 1.63 | 10 | 9.75 | 25.25 | 2.88 | - |
| ASME 16.5 | 400 | 24 | 36 | 32 | 1.88 | 24 | 1.75 | 10.5 | 10.25 | 27.62 | 3 | - |
| ASME 16.5 | 600 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | 3 | 2.75 | 1.5 | 0.56 | 0.38 |
| ASME 16.5 | 600 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 1.88 | 0.62 | 0.44 |
| ASME 16.5 | 600 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 2.12 | 0.69 | 0.5 |
| ASME 16.5 | 600 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | 3.75 | 3.5 | 2.5 | 0.81 | 0.56 |
| ASME 16.5 | 600 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | 4.25 | 4 | 2.75 | 0.88 | 0.62 |
| ASME 16.5 | 600 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | 4.25 | 4 | 3.31 | 1 | 0.69 |
| ASME 16.5 | 600 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | 4.75 | 4.5 | 3.94 | 1.12 | 0.75 |
| ASME 16.5 | 600 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | 5 | 4.75 | 4.62 | 1.25 | 0.81 |
| ASME 16.5 | 600 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.25 | 1.38 | … |
| ASME 16.5 | 600 | 4 | 10.75 | 8.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 6 | 1.5 | … |
| ASME 16.5 | 600 | 5 | 13 | 10.5 | 1.13 | 8 | 1 | 6.5 | 6.25 | 7.44 | 1.75 | … |
| ASME 16.5 | 600 | 6 | 14 | 11.5 | 1.13 | 12 | 1 | 6.75 | 6.5 | 8.75 | 1.88 | … |
| ASME 16.5 | 600 | 8 | 16.5 | 13.75 | 1.25 | 12 | 1.13 | 7.5 | 7.25 | 10.75 | 2.19 | … |
| ASME 16.5 | 600 | 10 | 20 | 17 | 1.38 | 16 | 1.25 | 8.5 | 8.25 | 13.5 | 2.5 | … |
| ASME 16.5 | 600 | 12 | 22 | 19.25 | 1.38 | 20 | 1.25 | 8.75 | 8.5 | 15.75 | 2.62 | … |
| ASME 16.5 | 600 | 14 | 23.75 | 20.75 | 1.5 | 20 | 1.38 | 9.25 | 9 | 17 | 2.75 | … |
| ASME 16.5 | 600 | 16 | 27 | 23.75 | 1.63 | 20 | 1.5 | 10 | 9.75 | 19.5 | 3 | … |
| ASME 16.5 | 600 | 18 | 29.25 | 25.75 | 1.75 | 20 | 1.63 | 10.75 | 10.5 | 21.5 | 3.25 | … |
| ASME 16.5 | 600 | 20 | 32 | 28.5 | 1.75 | 24 | 1.63 | 11.25 | 11 | 24 | 3.5 | … |
| ASME 16.5 | 600 | 22 | 34.25 | 30.62 | 1.88 | 24 | 1.75 | 12 | … | 26.25 | 3.75 | … |
| ASME 16.5 | 600 | 24 | 37 | 33 | 2 | 24 | 1.88 | 13 | 12.75 | 28.25 | 4 | … |
| ASME 16.5 | 900 | 1/2 | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3/4 | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/4 | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/2 | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 1/2 | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3 | 9.5 | 7.5 | 1 | 8 | 0.88 | 5.75 | 5.75 | 5 | 1.5 | - |
| ASME 16.5 | 900 | 4 | 11.5 | 9.25 | 1.25 | 8 | 1.13 | 6.75 | 6.75 | 6.25 | 1.75 | - |
| ASME 16.5 | 900 | 5 | 13.75 | 11 | 1.38 | 8 | 1.25 | 7.5 | 7.5 | 7.5 | 2 | - |
| ASME 16.5 | 900 | 6 | 15 | 12.5 | 1.25 | 12 | 1.13 | 7.5 | 7.75 | 9.25 | 2.19 | - |
| ASME 16.5 | 900 | 8 | 18.5 | 15.5 | 1.5 | 12 | 1.38 | 8.75 | 8.75 | 11.75 | 2.5 | - |
| ASME 16.5 | 900 | 10 | 21.5 | 18.5 | 1.5 | 16 | 1.38 | 9.25 | 9.25 | 14.5 | 2.75 | - |
| ASME 16.5 | 900 | 12 | 24 | 21 | 1.5 | 20 | 1.38 | 10 | 10 | 16.5 | 3.12 | - |
| ASME 16.5 | 900 | 14 | 25.25 | 22 | 1.63 | 20 | 1.5 | 10.75 | 11 | 17.75 | 3.38 | - |
| ASME 16.5 | 900 | 16 | 27.75 | 24.25 | 1.75 | 20 | 1.63 | 11.25 | 11.5 | 20 | 3.5 | - |
| ASME 16.5 | 900 | 18 | 31 | 27 | 2 | 20 | 1.88 | 12.75 | 13.25 | 22.25 | 4 | - |
| ASME 16.5 | 900 | 20 | 33.75 | 29.5 | 2.13 | 20 | 2 | 13.75 | 14.25 | 24.5 | 4.25 | - |
| ASME 16.5 | 900 | 24 | 41 | 35.5 | 2.63 | 20 | 2.5 | 17.25 | 18 | 29.5 | 5.5 | - |
| ASME 16.5 | 1500 | 1/2 | 4.75 | 3.25 | 0.88 | 4 | 0.75 | 4.25 | 4 | 1.5 | 0.88 | 0.38 |
| ASME 16.5 | 1500 | 3/4 | 5.12 | 3.5 | 0.88 | 4 | 0.75 | 4.5 | 4.25 | 1.75 | 1 | 0.44 |
| ASME 16.5 | 1500 | 1 | 5.88 | 4 | 1 | 4 | 0.88 | 5 | 4.75 | 2.06 | 1.12 | 0.5 |
| ASME 16.5 | 1500 | 1 1/4 | 6.25 | 4.38 | 1 | 4 | 0.88 | 5 | 4.75 | 2.5 | 1.12 | 0.56 |
| ASME 16.5 | 1500 | 1 1/2 | 7 | 4.88 | 1.13 | 4 | 1 | 5.5 | 5.25 | 2.75 | 1.25 | 0.62 |
| ASME 16.5 | 1500 | 2 | 8.5 | 6.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 4.12 | 1.5 | 0.69 |
| ASME 16.5 | 1500 | 2 1/2 | 9.62 | 7.5 | 1.13 | 8 | 1 | 6.25 | 6 | 4.88 | 1.62 | 0.75 |
| ASME 16.5 | 1500 | 3 | 10.5 | 8 | 1.13 | 8 | 1.13 | 7 | 6.75 | 5.25 | 1.88 | … |
| ASME 16.5 | 1500 | 4 | 12.25 | 9.5 | 1.38 | 8 | 1.25 | 7.75 | 7.5 | 6.38 | 2.12 | … |
| ASME 16.5 | 1500 | 5 | 14.75 | 11.5 | 1.63 | 8 | 1.5 | 9.75 | 9.5 | 7.75 | 2.88 | … |
| ASME 16.5 | 1500 | 6 | 15.5 | 12.5 | 1.5 | 12 | 1.38 | 10.25 | 10 | 9 | 3.25 | … |
| ASME 16.5 | 1500 | 8 | 19 | 15.5 | 1.75 | 12 | 1.63 | 11.5 | 11.25 | 11.5 | 3.62 | … |
| ASME 16.5 | 1500 | 10 | 23 | 19 | 2 | 12 | 1.88 | 13.25 | 13 | 14.5 | 4.25 | … |
| ASME 16.5 | 1500 | 12 | 26.5 | 22.5 | 2.13 | 16 | 2 | 14.75 | 14.5 | 17.75 | 4.88 | … |
| ASME 16.5 | 1500 | 14 | 29.5 | 25 | 2.38 | 16 | 2.25 | 16 | 15.75 | 19.5 | 5.25 | … |
| ASME 16.5 | 1500 | 16 | 32.5 | 27.75 | 2.63 | 16 | 2.5 | 17.5 | 17.25 | 21.75 | 5.75 | … |
| ASME 16.5 | 1500 | 18 | 36 | 30.5 | 2.88 | 16 | 2.75 | 19.5 | 19.25 | 23.5 | 6.38 | … |
| ASME 16.5 | 1500 | 20 | 38.75 | 32.75 | 3.13 | 16 | 3 | 21.25 | 21 | 25.25 | 7 | … |
| ASME 16.5 | 1500 | 24 | 46 | 39 | 3.63 | 16 | 3 | 24.25 | 24 | 30 | 8 | … |
| ASME 16.5 | 2500 | 1/2 | 5.25 | 3.5 | 0.88 | 4 | 0.75 | 4.75 | 4.5 | 1.69 | 1.19 | - |
| ASME 16.5 | 2500 | 3/4 | 5.5 | 3.75 | 0.88 | 4 | 0.75 | 5 | 4.75 | 2 | 1.25 | - |
| ASME 16.5 | 2500 | 1 | 6.25 | 4.25 | 1 | 4 | 0.88 | 5.5 | 5.25 | 2.25 | 1.38 | - |
| ASME 16.5 | 2500 | 1 1/4 | 7.25 | 5.12 | 1.13 | 4 | 1 | 6 | 5.75 | 2.88 | 1.5 | - |
| ASME 16.5 | 2500 | 1 1/2 | 8 | 5.75 | 1.25 | 4 | 1.13 | 6.75 | 6.5 | 3.12 | 1.75 | - |
| ASME 16.5 | 2500 | 2 | 9.25 | 6.75 | 1.13 | 8 | 1 | 7 | 6.75 | 3.75 | 2 | - |
| ASME 16.5 | 2500 | 2 1/2 | 10.5 | 7.75 | 1.25 | 8 | 1.13 | 7.75 | 7.5 | 4.5 | 2.25 | - |
| ASME 16.5 | 2500 | 3 | 12 | 9 | 1.38 | 8 | 1.25 | 8.75 | 8.5 | 5.25 | 2.62 | - |
| ASME 16.5 | 2500 | 4 | 14 | 10.75 | 1.63 | 8 | 1.5 | 10 | 9.75 | 6.5 | 3 | - |
| ASME 16.5 | 2500 | 5 | 16.5 | 12.75 | 1.88 | 8 | 1.75 | 11.75 | 11.5 | 8 | 3.62 | - |
| ASME 16.5 | 2500 | 6 | 19 | 14.5 | 2.13 | 8 | 2 | 13.5 | 13.25 | 9.25 | 4.25 | - |
| ASME 16.5 | 2500 | 8 | 21.75 | 17.25 | 2.13 | 12 | 2 | 15 | 14.75 | 12 | 5 | - |
| ASME 16.5 | 2500 | 10 | 26.5 | 21.25 | 2.63 | 12 | 2.5 | 19.25 | 19 | 14.75 | 6.5 | - |
| ASME 16.5 | 2500 | 12 | 30 | 24.38 | 2.88 | 12 | 2.75 | 21.25 | 21 | 17.38 | 7.25 | - |
Tbl. 4.F.10
Welding Neck Steel Pipe Flanges per ASME B16.5 (Class 400-2500)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Min Thickness Flange (tf) | Diameter Beginning Chamfer Welding Neck (A) | Length Through Hub Bore Welding Neck (Y3) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 400 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | - | - | 1.5 | 0.56 | 0.84 | 2.06 |
| ASME 16.5 | 400 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | - | - | 1.88 | 0.62 | 1.05 | 2.25 |
| ASME 16.5 | 400 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | - | - | 2.12 | 0.69 | 1.32 | 2.44 |
| ASME 16.5 | 400 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | - | - | 2.5 | 0.81 | 1.66 | 2.62 |
| ASME 16.5 | 400 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | - | - | 2.75 | 0.88 | 1.9 | 2.75 |
| ASME 16.5 | 400 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | - | - | 3.31 | 1 | 2.38 | 2.88 |
| ASME 16.5 | 400 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | - | - | 3.94 | 1.12 | 2.88 | 3.12 |
| ASME 16.5 | 400 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | - | - | 4.62 | 1.25 | 3.5 | 3.25 |
| ASME 16.5 | 400 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | - | - | 5.25 | 1.38 | 4 | 3.38 |
| ASME 16.5 | 400 | 4 | 10 | 7.88 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.75 | 1.38 | 4.5 | 3.5 |
| ASME 16.5 | 400 | 5 | 11 | 9.25 | 1 | 8 | 0.88 | 5.75 | 5.25 | 7 | 1.5 | 5.56 | 4 |
| ASME 16.5 | 400 | 6 | 12.5 | 10.62 | 1 | 12 | 0.88 | 6 | 5.75 | 8.12 | 1.62 | 6.63 | 4.06 |
| ASME 16.5 | 400 | 8 | 15 | 13 | 1.13 | 12 | 1 | 6.75 | 6.5 | 10.25 | 1.88 | 8.63 | 4.62 |
| ASME 16.5 | 400 | 10 | 17.5 | 15.25 | 1.25 | 16 | 1.13 | 7.5 | 7.25 | 12.62 | 2.12 | 10.75 | 4.88 |
| ASME 16.5 | 400 | 12 | 20.5 | 17.75 | 1.38 | 16 | 1.25 | 8 | 7.75 | 14.75 | 2.25 | 12.75 | 5.38 |
| ASME 16.5 | 400 | 14 | 23 | 20.25 | 1.38 | 20 | 1.25 | 8.25 | 8 | 16.75 | 2.38 | 14 | 5.88 |
| ASME 16.5 | 400 | 16 | 25.5 | 23 | 1.5 | 20 | 1.38 | 8.75 | 8.5 | 19 | 2.5 | 16 | 6 |
| ASME 16.5 | 400 | 18 | 28 | 24.75 | 1.5 | 24 | 1.38 | 9 | 8.75 | 21 | 2.62 | 18 | 6.5 |
| ASME 16.5 | 400 | 20 | 30.5 | 27 | 1.63 | 24 | 1.5 | 9.5 | 9.25 | 23.12 | 2.75 | 20 | 6.62 |
| ASME 16.5 | 400 | 22 | 33 | 29.25 | 1.75 | 24 | 1.63 | 10 | 9.75 | 25.25 | 2.88 | 22 | 6.75 |
| ASME 16.5 | 400 | 24 | 36 | 32 | 1.88 | 24 | 1.75 | 10.5 | 10.25 | 27.62 | 3 | 24 | 6.88 |
| ASME 16.5 | 600 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | 3 | 2.75 | 1.5 | 0.56 | 0.84 | 2.06 |
| ASME 16.5 | 600 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 1.88 | 0.62 | 1.05 | 2.25 |
| ASME 16.5 | 600 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 2.12 | 0.69 | 1.32 | 2.44 |
| ASME 16.5 | 600 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | 3.75 | 3.5 | 2.5 | 0.81 | 1.66 | 2.62 |
| ASME 16.5 | 600 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | 4.25 | 4 | 2.75 | 0.88 | 1.9 | 2.75 |
| ASME 16.5 | 600 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | 4.25 | 4 | 3.31 | 1 | 2.38 | 2.88 |
| ASME 16.5 | 600 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | 4.75 | 4.5 | 3.94 | 1.12 | 2.88 | 3.12 |
| ASME 16.5 | 600 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | 5 | 4.75 | 4.62 | 1.25 | 3.5 | 3.25 |
| ASME 16.5 | 600 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.25 | 1.38 | 4 | 3.38 |
| ASME 16.5 | 600 | 4 | 10.75 | 8.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 6 | 1.5 | 4.5 | 4 |
| ASME 16.5 | 600 | 5 | 13 | 10.5 | 1.13 | 8 | 1 | 6.5 | 6.25 | 7.44 | 1.75 | 5.56 | 4.5 |
| ASME 16.5 | 600 | 6 | 14 | 11.5 | 1.13 | 12 | 1 | 6.75 | 6.5 | 8.75 | 1.88 | 6.63 | 4.62 |
| ASME 16.5 | 600 | 8 | 16.5 | 13.75 | 1.25 | 12 | 1.13 | 7.5 | 7.25 | 10.75 | 2.19 | 8.63 | 5.25 |
| ASME 16.5 | 600 | 10 | 20 | 17 | 1.38 | 16 | 1.25 | 8.5 | 8.25 | 13.5 | 2.5 | 10.75 | 6 |
| ASME 16.5 | 600 | 12 | 22 | 19.25 | 1.38 | 20 | 1.25 | 8.75 | 8.5 | 15.75 | 2.62 | 12.75 | 6.12 |
| ASME 16.5 | 600 | 14 | 23.75 | 20.75 | 1.5 | 20 | 1.38 | 9.25 | 9 | 17 | 2.75 | 14 | 6.5 |
| ASME 16.5 | 600 | 16 | 27 | 23.75 | 1.63 | 20 | 1.5 | 10 | 9.75 | 19.5 | 3 | 16 | 7 |
| ASME 16.5 | 600 | 18 | 29.25 | 25.75 | 1.75 | 20 | 1.63 | 10.75 | 10.5 | 21.5 | 3.25 | 18 | 7.25 |
| ASME 16.5 | 600 | 20 | 32 | 28.5 | 1.75 | 24 | 1.63 | 11.25 | 11 | 24 | 3.5 | 20 | 7.5 |
| ASME 16.5 | 600 | 22 | 34.25 | 30.62 | 1.88 | 24 | 1.75 | 12 | … | 26.25 | 3.75 | 22 | 7.75 |
| ASME 16.5 | 600 | 24 | 37 | 33 | 2 | 24 | 1.88 | 13 | 12.75 | 28.25 | 4 | 24 | 8 |
| ASME 16.5 | 900 | 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3/4 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/4 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3 | 9.5 | 7.5 | 1 | 8 | 0.88 | 5.75 | 5.75 | 5 | 1.5 | 3.5 | 4 |
| ASME 16.5 | 900 | 4 | 11.5 | 9.25 | 1.25 | 8 | 1.13 | 6.75 | 6.75 | 6.25 | 1.75 | 4.5 | 4.5 |
| ASME 16.5 | 900 | 5 | 13.75 | 11 | 1.38 | 8 | 1.25 | 7.5 | 7.5 | 7.5 | 2 | 5.56 | 5 |
| ASME 16.5 | 900 | 6 | 15 | 12.5 | 1.25 | 12 | 1.13 | 7.5 | 7.75 | 9.25 | 2.19 | 6.63 | 5.5 |
| ASME 16.5 | 900 | 8 | 18.5 | 15.5 | 1.5 | 12 | 1.38 | 8.75 | 8.75 | 11.75 | 2.5 | 8.63 | 6.38 |
| ASME 16.5 | 900 | 10 | 21.5 | 18.5 | 1.5 | 16 | 1.38 | 9.25 | 9.25 | 14.5 | 2.75 | 10.75 | 7.25 |
| ASME 16.5 | 900 | 12 | 24 | 21 | 1.5 | 20 | 1.38 | 10 | 10 | 16.5 | 3.12 | 12.75 | 7.88 |
| ASME 16.5 | 900 | 14 | 25.25 | 22 | 1.63 | 20 | 1.5 | 10.75 | 11 | 17.75 | 3.38 | 14 | 8.38 |
| ASME 16.5 | 900 | 16 | 27.75 | 24.25 | 1.75 | 20 | 1.63 | 11.25 | 11.5 | 20 | 3.5 | 16 | 8.5 |
| ASME 16.5 | 900 | 18 | 31 | 27 | 2 | 20 | 1.88 | 12.75 | 13.25 | 22.25 | 4 | 18 | 9 |
| ASME 16.5 | 900 | 20 | 33.75 | 29.5 | 2.13 | 20 | 2 | 13.75 | 14.25 | 24.5 | 4.25 | 20 | 9.75 |
| ASME 16.5 | 900 | 24 | 41 | 35.5 | 2.63 | 20 | 2.5 | 17.25 | 18 | 29.5 | 5.5 | 24 | 11.5 |
| ASME 16.5 | 1500 | 1/2 | 4.75 | 3.25 | 0.88 | 4 | 0.75 | 4.25 | 4 | 1.5 | 0.88 | 0.84 | 2.28 |
| ASME 16.5 | 1500 | 3/4 | 5.12 | 3.5 | 0.88 | 4 | 0.75 | 4.5 | 4.25 | 1.75 | 1 | 1.05 | 2.75 |
| ASME 16.5 | 1500 | 1 | 5.88 | 4 | 1 | 4 | 0.88 | 5 | 4.75 | 2.06 | 1.12 | 1.32 | 2.88 |
| ASME 16.5 | 1500 | 1 1/4 | 6.25 | 4.38 | 1 | 4 | 0.88 | 5 | 4.75 | 2.5 | 1.12 | 1.66 | 2.88 |
| ASME 16.5 | 1500 | 1 1/2 | 7 | 4.88 | 1.13 | 4 | 1 | 5.5 | 5.25 | 2.75 | 1.25 | 1.9 | 3.25 |
| ASME 16.5 | 1500 | 2 | 8.5 | 6.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 4.12 | 1.5 | 2.38 | 4 |
| ASME 16.5 | 1500 | 2 1/2 | 9.62 | 7.5 | 1.13 | 8 | 1 | 6.25 | 6 | 4.88 | 1.62 | 2.88 | 4.12 |
| ASME 16.5 | 1500 | 3 | 10.5 | 8 | 1.13 | 8 | 1.13 | 7 | 6.75 | 5.25 | 1.88 | 3.5 | 4.62 |
| ASME 16.5 | 1500 | 4 | 12.25 | 9.5 | 1.38 | 8 | 1.25 | 7.75 | 7.5 | 6.38 | 2.12 | 4.5 | 4.88 |
| ASME 16.5 | 1500 | 5 | 14.75 | 11.5 | 1.63 | 8 | 1.5 | 9.75 | 9.5 | 7.75 | 2.88 | 5.56 | 6.12 |
| ASME 16.5 | 1500 | 6 | 15.5 | 12.5 | 1.5 | 12 | 1.38 | 10.25 | 10 | 9 | 3.25 | 6.63 | 6.75 |
| ASME 16.5 | 1500 | 8 | 19 | 15.5 | 1.75 | 12 | 1.63 | 11.5 | 11.25 | 11.5 | 3.62 | 8.63 | 8.38 |
| ASME 16.5 | 1500 | 10 | 23 | 19 | 2 | 12 | 1.88 | 13.25 | 13 | 14.5 | 4.25 | 10.75 | 10 |
| ASME 16.5 | 1500 | 12 | 26.5 | 22.5 | 2.13 | 16 | 2 | 14.75 | 14.5 | 17.75 | 4.88 | 12.75 | 11.12 |
| ASME 16.5 | 1500 | 14 | 29.5 | 25 | 2.38 | 16 | 2.25 | 16 | 15.75 | 19.5 | 5.25 | 14 | 11.75 |
| ASME 16.5 | 1500 | 16 | 32.5 | 27.75 | 2.63 | 16 | 2.5 | 17.5 | 17.25 | 21.75 | 5.75 | 16 | 12.25 |
| ASME 16.5 | 1500 | 18 | 36 | 30.5 | 2.88 | 16 | 2.75 | 19.5 | 19.25 | 23.5 | 6.38 | 18 | 12.88 |
| ASME 16.5 | 1500 | 20 | 38.75 | 32.75 | 3.13 | 16 | 3 | 21.25 | 21 | 25.25 | 7 | 20 | 14 |
| ASME 16.5 | 1500 | 24 | 46 | 39 | 3.63 | 16 | 3 | 24.25 | 24 | 30 | 8 | 24 | 16 |
| ASME 16.5 | 2500 | 1/2 | 5.25 | 3.5 | 0.88 | 4 | 0.75 | 4.75 | 4.5 | 1.69 | 1.19 | 0.84 | 2.88 |
| ASME 16.5 | 2500 | 3/4 | 5.5 | 3.75 | 0.88 | 4 | 0.75 | 5 | 4.75 | 2 | 1.25 | 1.05 | 3.12 |
| ASME 16.5 | 2500 | 1 | 6.25 | 4.25 | 1 | 4 | 0.88 | 5.5 | 5.25 | 2.25 | 1.38 | 1.32 | 3.5 |
| ASME 16.5 | 2500 | 1 1/4 | 7.25 | 5.12 | 1.13 | 4 | 1 | 6 | 5.75 | 2.88 | 1.5 | 1.66 | 3.75 |
| ASME 16.5 | 2500 | 1 1/2 | 8 | 5.75 | 1.25 | 4 | 1.13 | 6.75 | 6.5 | 3.12 | 1.75 | 1.9 | 4.38 |
| ASME 16.5 | 2500 | 2 | 9.25 | 6.75 | 1.13 | 8 | 1 | 7 | 6.75 | 3.75 | 2 | 2.38 | 5 |
| ASME 16.5 | 2500 | 2 1/2 | 10.5 | 7.75 | 1.25 | 8 | 1.13 | 7.75 | 7.5 | 4.5 | 2.25 | 2.88 | 5.62 |
| ASME 16.5 | 2500 | 3 | 12 | 9 | 1.38 | 8 | 1.25 | 8.75 | 8.5 | 5.25 | 2.62 | 3.5 | 6.62 |
| ASME 16.5 | 2500 | 4 | 14 | 10.75 | 1.63 | 8 | 1.5 | 10 | 9.75 | 6.5 | 3 | 4.5 | 7.5 |
| ASME 16.5 | 2500 | 5 | 16.5 | 12.75 | 1.88 | 8 | 1.75 | 11.75 | 11.5 | 8 | 3.62 | 5.56 | 9 |
| ASME 16.5 | 2500 | 6 | 19 | 14.5 | 2.13 | 8 | 2 | 13.5 | 13.25 | 9.25 | 4.25 | 6.63 | 10.75 |
| ASME 16.5 | 2500 | 8 | 21.75 | 17.25 | 2.13 | 12 | 2 | 15 | 14.75 | 12 | 5 | 8.63 | 12.5 |
| ASME 16.5 | 2500 | 10 | 26.5 | 21.25 | 2.63 | 12 | 2.5 | 19.25 | 19 | 14.75 | 6.5 | 10.75 | 16.5 |
| ASME 16.5 | 2500 | 12 | 30 | 24.38 | 2.88 | 12 | 2.75 | 21.25 | 21 | 17.38 | 7.25 | 12.75 | 18.25 |
Tbl. 4.F.11
Lapped Steel Pipe Flanges per ASME B16.5 (Class 400-2500)
| TYPE | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Drilling-Diameter Bolt Circle (W) | Drilling-Diameter Bolt Holes | Drilling-Number of Bolts | Drilling-Bolt Diameter | Stud Bolts (L)-Raised Face | Machine Bolts (L) - Raised face | Diameter of Hub (X) | Min Thickness Flange (tf) | Bore- Min Lapped (B2) | Length Through Hub- Lapped (Y2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASME 16.5 | 400 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | - | - | 1.5 | 0.56 | 0.9 | 0.88 |
| ASME 16.5 | 400 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | - | - | 1.88 | 0.62 | 1.11 | 1 |
| ASME 16.5 | 400 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | - | - | 2.12 | 0.69 | 1.38 | 1.06 |
| ASME 16.5 | 400 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | - | - | 2.5 | 0.81 | 1.72 | 1.12 |
| ASME 16.5 | 400 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | - | - | 2.75 | 0.88 | 1.97 | 1.25 |
| ASME 16.5 | 400 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | - | - | 3.31 | 1 | 2.46 | 1.44 |
| ASME 16.5 | 400 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | - | - | 3.94 | 1.12 | 2.97 | 1.62 |
| ASME 16.5 | 400 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | - | - | 4.62 | 1.25 | 3.6 | 1.81 |
| ASME 16.5 | 400 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | - | - | 5.25 | 1.38 | 4.1 | 1.94 |
| ASME 16.5 | 400 | 4 | 10 | 7.88 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.75 | 1.38 | 4.63 | 2 |
| ASME 16.5 | 400 | 5 | 11 | 9.25 | 1 | 8 | 0.88 | 5.75 | 5.25 | 7 | 1.5 | 5.69 | 2.12 |
| ASME 16.5 | 400 | 6 | 12.5 | 10.62 | 1 | 12 | 0.88 | 6 | 5.75 | 8.12 | 1.62 | 6.75 | 2.25 |
| ASME 16.5 | 400 | 8 | 15 | 13 | 1.13 | 12 | 1 | 6.75 | 6.5 | 10.25 | 1.88 | 8.75 | 2.69 |
| ASME 16.5 | 400 | 10 | 17.5 | 15.25 | 1.25 | 16 | 1.13 | 7.5 | 7.25 | 12.62 | 2.12 | 10.92 | 4 |
| ASME 16.5 | 400 | 12 | 20.5 | 17.75 | 1.38 | 16 | 1.25 | 8 | 7.75 | 14.75 | 2.25 | 12.92 | 4.25 |
| ASME 16.5 | 400 | 14 | 23 | 20.25 | 1.38 | 20 | 1.25 | 8.25 | 8 | 16.75 | 2.38 | 14.18 | 4.62 |
| ASME 16.5 | 400 | 16 | 25.5 | 23 | 1.5 | 20 | 1.38 | 8.75 | 8.5 | 19 | 2.5 | 16.19 | 5 |
| ASME 16.5 | 400 | 18 | 28 | 24.75 | 1.5 | 24 | 1.38 | 9 | 8.75 | 21 | 2.62 | 18.2 | 5.38 |
| ASME 16.5 | 400 | 20 | 30.5 | 27 | 1.63 | 24 | 1.5 | 9.5 | 9.25 | 23.12 | 2.75 | 20.25 | 5.75 |
| ASME 16.5 | 400 | 22 | 33 | 29.25 | 1.75 | 24 | 1.63 | 10 | 9.75 | 25.25 | 2.88 | 22.25 | 6 |
| ASME 16.5 | 400 | 24 | 36 | 32 | 1.88 | 24 | 1.75 | 10.5 | 10.25 | 27.62 | 3 | 24.25 | 6.25 |
| ASME 16.5 | 600 | 1/2 | 3.75 | 2.62 | 0.63 | 4 | 0.5 | 3 | 2.75 | 1.5 | 0.56 | 0.9 | 0.88 |
| ASME 16.5 | 600 | 3/4 | 4.62 | 3.25 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 1.88 | 0.62 | 1.11 | 1 |
| ASME 16.5 | 600 | 1 | 4.88 | 3.5 | 0.75 | 4 | 0.63 | 3.5 | 3.25 | 2.12 | 0.69 | 1.38 | 1.06 |
| ASME 16.5 | 600 | 1 1/4 | 5.25 | 3.88 | 0.75 | 4 | 0.63 | 3.75 | 3.5 | 2.5 | 0.81 | 1.72 | 1.12 |
| ASME 16.5 | 600 | 1 1/2 | 6.12 | 4.5 | 0.88 | 4 | 0.75 | 4.25 | 4 | 2.75 | 0.88 | 1.97 | 1.25 |
| ASME 16.5 | 600 | 2 | 6.5 | 5 | 0.75 | 8 | 0.63 | 4.25 | 4 | 3.31 | 1 | 2.46 | 1.44 |
| ASME 16.5 | 600 | 2 1/2 | 7.5 | 5.88 | 0.88 | 8 | 0.75 | 4.75 | 4.5 | 3.94 | 1.12 | 2.97 | 1.62 |
| ASME 16.5 | 600 | 3 | 8.25 | 6.62 | 0.88 | 8 | 0.75 | 5 | 4.75 | 4.62 | 1.25 | 3.6 | 1.81 |
| ASME 16.5 | 600 | 3 1/2 | 9 | 7.25 | 1 | 8 | 0.88 | 5.5 | 5.25 | 5.25 | 1.38 | 4.1 | 1.94 |
| ASME 16.5 | 600 | 4 | 10.75 | 8.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 6 | 1.5 | 4.6 | 2.12 |
| ASME 16.5 | 600 | 5 | 13 | 10.5 | 1.13 | 8 | 1 | 6.5 | 6.25 | 7.44 | 1.75 | 5.69 | 2.38 |
| ASME 16.5 | 600 | 6 | 14 | 11.5 | 1.13 | 12 | 1 | 6.75 | 6.5 | 8.75 | 1.88 | 6.75 | 2.62 |
| ASME 16.5 | 600 | 8 | 16.5 | 13.75 | 1.25 | 12 | 1.13 | 7.5 | 7.25 | 10.75 | 2.19 | 8.75 | 3 |
| ASME 16.5 | 600 | 10 | 20 | 17 | 1.38 | 16 | 1.25 | 8.5 | 8.25 | 13.5 | 2.5 | 10.92 | 4.38 |
| ASME 16.5 | 600 | 12 | 22 | 19.25 | 1.38 | 20 | 1.25 | 8.75 | 8.5 | 15.75 | 2.62 | 12.92 | 4.62 |
| ASME 16.5 | 600 | 14 | 23.75 | 20.75 | 1.5 | 20 | 1.38 | 9.25 | 9 | 17 | 2.75 | 14.18 | 5 |
| ASME 16.5 | 600 | 16 | 27 | 23.75 | 1.63 | 20 | 1.5 | 10 | 9.75 | 19.5 | 3 | 16.19 | 5.5 |
| ASME 16.5 | 600 | 18 | 29.25 | 25.75 | 1.75 | 20 | 1.63 | 10.75 | 10.5 | 21.5 | 3.25 | 18.2 | 6 |
| ASME 16.5 | 600 | 20 | 32 | 28.5 | 1.75 | 24 | 1.63 | 11.25 | 11 | 24 | 3.5 | 20.25 | 6.5 |
| ASME 16.5 | 600 | 22 | 34.25 | 30.62 | 1.88 | 24 | 1.75 | 12 | … | 26.25 | 3.75 | 22.25 | 6.88 |
| ASME 16.5 | 600 | 24 | 37 | 33 | 2 | 24 | 1.88 | 13 | 12.75 | 28.25 | 4 | 24.25 | 7.25 |
| ASME 16.5 | 900 | 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3/4 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/4 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 1 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 2 1/2 | - | - | - | - | - | - | - | - | - | - | - |
| ASME 16.5 | 900 | 3 | 9.5 | 7.5 | 1 | 8 | 0.88 | 5.75 | 5.75 | 5 | 1.5 | 3.6 | 2.12 |
| ASME 16.5 | 900 | 4 | 11.5 | 9.25 | 1.25 | 8 | 1.13 | 6.75 | 6.75 | 6.25 | 1.75 | 4.6 | 2.75 |
| ASME 16.5 | 900 | 5 | 13.75 | 11 | 1.38 | 8 | 1.25 | 7.5 | 7.5 | 7.5 | 2 | 5.69 | 3.12 |
| ASME 16.5 | 900 | 6 | 15 | 12.5 | 1.25 | 12 | 1.13 | 7.5 | 7.75 | 9.25 | 2.19 | 6.75 | 3.38 |
| ASME 16.5 | 900 | 8 | 18.5 | 15.5 | 1.5 | 12 | 1.38 | 8.75 | 8.75 | 11.75 | 2.5 | 8.75 | 4.5 |
| ASME 16.5 | 900 | 10 | 21.5 | 18.5 | 1.5 | 16 | 1.38 | 9.25 | 9.25 | 14.5 | 2.75 | 10.92 | 5 |
| ASME 16.5 | 900 | 12 | 24 | 21 | 1.5 | 20 | 1.38 | 10 | 10 | 16.5 | 3.12 | 12.92 | 5.62 |
| ASME 16.5 | 900 | 14 | 25.25 | 22 | 1.63 | 20 | 1.5 | 10.75 | 11 | 17.75 | 3.38 | 14.18 | 6.12 |
| ASME 16.5 | 900 | 16 | 27.75 | 24.25 | 1.75 | 20 | 1.63 | 11.25 | 11.5 | 20 | 3.5 | 16.19 | 6.5 |
| ASME 16.5 | 900 | 18 | 31 | 27 | 2 | 20 | 1.88 | 12.75 | 13.25 | 22.25 | 4 | 18.2 | 7.5 |
| ASME 16.5 | 900 | 20 | 33.75 | 29.5 | 2.13 | 20 | 2 | 13.75 | 14.25 | 24.5 | 4.25 | 20.25 | 8.25 |
| ASME 16.5 | 900 | 24 | 41 | 35.5 | 2.63 | 20 | 2.5 | 17.25 | 18 | 29.5 | 5.5 | 24.25 | 10.5 |
| ASME 16.5 | 1500 | 1/2 | 4.75 | 3.25 | 0.88 | 4 | 0.75 | 4.25 | 4 | 1.5 | 0.88 | 0.9 | 1.25 |
| ASME 16.5 | 1500 | 3/4 | 5.12 | 3.5 | 0.88 | 4 | 0.75 | 4.5 | 4.25 | 1.75 | 1 | 1.11 | 1.38 |
| ASME 16.5 | 1500 | 1 | 5.88 | 4 | 1 | 4 | 0.88 | 5 | 4.75 | 2.06 | 1.12 | 1.38 | 1.62 |
| ASME 16.5 | 1500 | 1 1/4 | 6.25 | 4.38 | 1 | 4 | 0.88 | 5 | 4.75 | 2.5 | 1.12 | 1.72 | 1.62 |
| ASME 16.5 | 1500 | 1 1/2 | 7 | 4.88 | 1.13 | 4 | 1 | 5.5 | 5.25 | 2.75 | 1.25 | 1.97 | 1.75 |
| ASME 16.5 | 1500 | 2 | 8.5 | 6.5 | 1 | 8 | 0.88 | 5.75 | 5.5 | 4.12 | 1.5 | 2.46 | 2.25 |
| ASME 16.5 | 1500 | 2 1/2 | 9.62 | 7.5 | 1.13 | 8 | 1 | 6.25 | 6 | 4.88 | 1.62 | 2.97 | 2.5 |
| ASME 16.5 | 1500 | 3 | 10.5 | 8 | 1.13 | 8 | 1.13 | 7 | 6.75 | 5.25 | 1.88 | 3.6 | 2.88 |
| ASME 16.5 | 1500 | 4 | 12.25 | 9.5 | 1.38 | 8 | 1.25 | 7.75 | 7.5 | 6.38 | 2.12 | 4.6 | 3.56 |
| ASME 16.5 | 1500 | 5 | 14.75 | 11.5 | 1.63 | 8 | 1.5 | 9.75 | 9.5 | 7.75 | 2.88 | 5.69 | 4.12 |
| ASME 16.5 | 1500 | 6 | 15.5 | 12.5 | 1.5 | 12 | 1.38 | 10.25 | 10 | 9 | 3.25 | 6.75 | 4.69 |
| ASME 16.5 | 1500 | 8 | 19 | 15.5 | 1.75 | 12 | 1.63 | 11.5 | 11.25 | 11.5 | 3.62 | 8.75 | 5.62 |
| ASME 16.5 | 1500 | 10 | 23 | 19 | 2 | 12 | 1.88 | 13.25 | 13 | 14.5 | 4.25 | 10.92 | 7 |
| ASME 16.5 | 1500 | 12 | 26.5 | 22.5 | 2.13 | 16 | 2 | 14.75 | 14.5 | 17.75 | 4.88 | 12.92 | 8.62 |
| ASME 16.5 | 1500 | 14 | 29.5 | 25 | 2.38 | 16 | 2.25 | 16 | 15.75 | 19.5 | 5.25 | 14.18 | 9.5 |
| ASME 16.5 | 1500 | 16 | 32.5 | 27.75 | 2.63 | 16 | 2.5 | 17.5 | 17.25 | 21.75 | 5.75 | 16.19 | 10.25 |
| ASME 16.5 | 1500 | 18 | 36 | 30.5 | 2.88 | 16 | 2.75 | 19.5 | 19.25 | 23.5 | 6.38 | 18.2 | 10.88 |
| ASME 16.5 | 1500 | 20 | 38.75 | 32.75 | 3.13 | 16 | 3 | 21.25 | 21 | 25.25 | 7 | 20.25 | 11.5 |
| ASME 16.5 | 1500 | 24 | 46 | 39 | 3.63 | 16 | 3 | 24.25 | 24 | 30 | 8 | 24.25 | 13 |
| ASME 16.5 | 2500 | 1/2 | 5.25 | 3.5 | 0.88 | 4 | 0.75 | 4.75 | 4.5 | 1.69 | 1.19 | 0.9 | 1.56 |
| ASME 16.5 | 2500 | 3/4 | 5.5 | 3.75 | 0.88 | 4 | 0.75 | 5 | 4.75 | 2 | 1.25 | 1.11 | 1.69 |
| ASME 16.5 | 2500 | 1 | 6.25 | 4.25 | 1 | 4 | 0.88 | 5.5 | 5.25 | 2.25 | 1.38 | 1.38 | 1.88 |
| ASME 16.5 | 2500 | 1 1/4 | 7.25 | 5.12 | 1.13 | 4 | 1 | 6 | 5.75 | 2.88 | 1.5 | 1.72 | 2.06 |
| ASME 16.5 | 2500 | 1 1/2 | 8 | 5.75 | 1.25 | 4 | 1.13 | 6.75 | 6.5 | 3.12 | 1.75 | 1.97 | 2.38 |
| ASME 16.5 | 2500 | 2 | 9.25 | 6.75 | 1.13 | 8 | 1 | 7 | 6.75 | 3.75 | 2 | 2.46 | 2.75 |
| ASME 16.5 | 2500 | 2 1/2 | 10.5 | 7.75 | 1.25 | 8 | 1.13 | 7.75 | 7.5 | 4.5 | 2.25 | 2.97 | 3.12 |
| ASME 16.5 | 2500 | 3 | 12 | 9 | 1.38 | 8 | 1.25 | 8.75 | 8.5 | 5.25 | 2.62 | 3.6 | 3.62 |
| ASME 16.5 | 2500 | 4 | 14 | 10.75 | 1.63 | 8 | 1.5 | 10 | 9.75 | 6.5 | 3 | 4.6 | 4.25 |
| ASME 16.5 | 2500 | 5 | 16.5 | 12.75 | 1.88 | 8 | 1.75 | 11.75 | 11.5 | 8 | 3.62 | 5.69 | 5.12 |
| ASME 16.5 | 2500 | 6 | 19 | 14.5 | 2.13 | 8 | 2 | 13.5 | 13.25 | 9.25 | 4.25 | 6.75 | 6 |
| ASME 16.5 | 2500 | 8 | 21.75 | 17.25 | 2.13 | 12 | 2 | 15 | 14.75 | 12 | 5 | 8.75 | 7 |
| ASME 16.5 | 2500 | 10 | 26.5 | 21.25 | 2.63 | 12 | 2.5 | 19.25 | 19 | 14.75 | 6.5 | 10.92 | 9 |
| ASME 16.5 | 2500 | 12 | 30 | 24.38 | 2.88 | 12 | 2.75 | 21.25 | 21 | 17.38 | 7.25 | 12.92 | 10 |
Tbl. 4.F.12
Notes:
- Refer to ANSI/ASME B16.5 for notes, pressures, and minimum design requirements.
- Any column with "-" relate to a note in the standard or is not be covered in the standard.
- Data columns from the reference standard may have been omitted.
- US units are inches, Metric Units are millimeters.
- Studs are measured parallel to the axis (L) from the first to the thread without the chamfers (points).
- Hex bolts are measured from under the head to the top of the bolt.
Flanges per ASME B16.47 Series A Class 150-300
| ASME | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Min Thickness Flange (T) | Length Through Hub (Y) | Diameter of Hub (X) | Hub Diameter Top (A) | Raised Face Diameter (R) | Drilling-Daimeter Bolt Circle | Drilling- # Bolt Holes | Drilling- Diameter Bolt Hole | Diameter of Bolt | Length of Bolts- Stud Bolt Raised Face (.06 in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16.47 Series A | 150 | 26 | 34.25 | 2.63 | 4.69 | 26.62 | 26.00 | 29.50 | 31.75 | 24 | 1 3/8 | 1 1/4 | 8.75 |
| 16.47 Series A | 150 | 28 | 36.50 | 2.75 | 4.88 | 28.62 | 28.00 | 31.50 | 34.00 | 28 | 1 3/8 | 1 1/4 | 9.00 |
| 16.47 Series A | 150 | 30 | 38.75 | 2.88 | 5.32 | 30.75 | 30.00 | 33.75 | 36.00 | 28 | 1 3/8 | 1 1/4 | 9.25 |
| 16.47 Series A | 150 | 32 | 41.75 | 3.13 | 5.63 | 32.75 | 32.00 | 36.00 | 38.50 | 28 | 1 5/8 | 1 1/2 | 10.50 |
| 16.47 Series A | 150 | 34 | 43.75 | 3.19 | 5.82 | 34.75 | 34.00 | 38.00 | 40.50 | 32 | 1 5/8 | 1 1/2 | 10.50 |
| 16.47 Series A | 150 | 36 | 46.00 | 3.50 | 6.13 | 36.75 | 36.00 | 40.25 | 42.75 | 32 | 1 5/8 | 1 1/2 | 11.25 |
| 16.47 Series A | 150 | 38 | 48.75 | 3.38 | 6.13 | 39.00 | 38.00 | 42.25 | 45.25 | 32 | 1 5/8 | 1 1/2 | 11.00 |
| 16.47 Series A | 150 | 40 | 50.75 | 3.50 | 6.38 | 41.00 | 40.00 | 44.25 | 47.25 | 36 | 1 5/8 | 1 1/2 | 11.25 |
| 16.47 Series A | 150 | 42 | 53.00 | 3.75 | 6.69 | 43.00 | 42.00 | 47.00 | 49.50 | 36 | 1 5/8 | 1 1/2 | 11.75 |
| 16.47 Series A | 150 | 44 | 55.25 | 3.94 | 6.94 | 45.00 | 44.00 | 49.00 | 51.75 | 40 | 1 5/8 | 1 1/2 | 12.00 |
| 16.47 Series A | 150 | 46 | 57.25 | 4.00 | 7.25 | 47.12 | 46.00 | 51.00 | 53.75 | 40 | 1 5/8 | 1 1/2 | 12.25 |
| 16.47 Series A | 150 | 48 | 59.50 | 4.19 | 7.50 | 49.12 | 48.00 | 52.50 | 56.00 | 44 | 1 5/8 | 1 1/2 | 12.50 |
| 16.47 Series A | 150 | 50 | 67.75 | 4.32 | 7.94 | 51.25 | 50.00 | 55.50 | 58.25 | 44 | 1 7/8 | 1 3/4 | 13.50 |
| 16.47 Series A | 150 | 52 | 64.00 | 4.50 | 8.19 | 53.25 | 52.00 | 57.50 | 60.50 | 44 | 1 7/8 | 1 3/4 | 13.75 |
| 16.47 Series A | 150 | 54 | 66.25 | 4.69 | 8.44 | 55.25 | 54.00 | 59.50 | 62.75 | 44 | 1 7/8 | 1 3/4 | 14.00 |
| 16.47 Series A | 150 | 56 | 68.75 | 4.82 | 8.94 | 57.38 | 56.00 | 62.00 | 65.00 | 48 | 1 7/8 | 1 3/4 | 14.50 |
| 16.47 Series A | 150 | 58 | 71.00 | 5.00 | 9.19 | 59.38 | 58.00 | 64.00 | 67.25 | 48 | 1 7/8 | 1 3/4 | 14.75 |
| 16.47 Series A | 150 | 60 | 73.00 | 5.13 | 9.38 | 61.38 | 60.00 | 66.00 | 69.25 | 52 | 1 7/8 | 1 3/4 | 15.00 |
| 16.47 Series A | 300 | 26 | 38.25 | 3.07 | 7.19 | 28.38 | 26.00 | 29.50 | 34.50 | 28 | 1 3/4 | 1 5/8 | 10.50 |
| 16.47 Series A | 300 | 28 | 40.75 | 3.32 | 7.69 | 30.50 | 28.00 | 31.50 | 37.00 | 28 | 1 3/4 | 1 5/8 | 11.00 |
| 16.47 Series A | 300 | 30 | 43.00 | 3.57 | 8.19 | 32.56 | 30.00 | 33.75 | 39.25 | 28 | 1 7/8 | 1 3/4 | 11.75 |
| 16.47 Series A | 300 | 32 | 45.25 | 3.82 | 8.69 | 34.69 | 32.00 | 36.00 | 41.50 | 28 | 2 | 1 7/8 | 12.75 |
| 16.47 Series A | 300 | 34 | 47.50 | 3.94 | 9.07 | 36.88 | 34.00 | 38.00 | 43.50 | 28 | 2 | 1 7/8 | 13.00 |
| 16.47 Series A | 300 | 36 | 50.00 | 4.07 | 9.44 | 39.00 | 36.00 | 40.25 | 46.00 | 32 | 2 1/8 | 2 | 13.50 |
| 16.47 Series A | 300 | 38 | 46.00 | 4.19 | 7.06 | 39.12 | 38.00 | 40.50 | 43.00 | 32 | 1 5/8 | 1 1/2 | 12.50 |
| 16.47 Series A | 300 | 40 | 48.75 | 4.44 | 7.56 | 41.25 | 40.00 | 42.75 | 45.50 | 32 | 1 3/4 | 1 5/8 | 13.25 |
| 16.47 Series A | 300 | 42 | 50.75 | 4.63 | 7.82 | 43.25 | 42.00 | 44.75 | 47.50 | 32 | 1 3/4 | 1 5/8 | 13.75 |
| 16.47 Series A | 300 | 44 | 53.25 | 4.82 | 8.06 | 45.25 | 44.00 | 47.00 | 49.75 | 32 | 1 7/8 | 1 3/4 | 14.50 |
| 16.47 Series A | 300 | 46 | 55.75 | 5.00 | 8.44 | 47.38 | 46.00 | 49.00 | 52.00 | 28 | 2 | 1 7/8 | 15.00 |
| 16.47 Series A | 300 | 48 | 57.75 | 5.19 | 8.75 | 49.38 | 48.00 | 51.25 | 54.00 | 32 | 2 | 1 7/8 | 15.50 |
| 16.47 Series A | 300 | 50 | 60.25 | 5.44 | 9.07 | 51.38 | 50.00 | 53.50 | 56.25 | 32 | 2 1/8 | 2 | 16.00 |
| 16.47 Series A | 300 | 52 | 62.25 | 5.63 | 9.32 | 53.38 | 52.00 | 55.50 | 58.25 | 32 | 2 1/8 | 2 | 16.50 |
| 16.47 Series A | 300 | 54 | 65.25 | 5.94 | 9.88 | 55.50 | 54.00 | 57.75 | 61.00 | 28 | 2 3/8 | 2 1/4 | 17.50 |
| 16.47 Series A | 300 | 56 | 67.25 | 6.00 | 10.19 | 57.62 | 56.00 | 59.75 | 63.00 | 28 | 2 3/8 | 2 1/4 | 17.75 |
| 16.47 Series A | 300 | 58 | 69.25 | 6.19 | 10.44 | 59.62 | 58.00 | 62.00 | 65.00 | 32 | 2 3/8 | 2 1/4 | 18.25 |
| 16.47 Series A | 300 | 60 | 71.25 | 6.38 | 10.69 | 61.62 | 60.00 | 64.00 | 67.00 | 32 | 2 3/8 | 1 1/4 | 18.75 |
Tbl. 4.F.13
Notes:
- Refer to ANSI/ASME B16.47 for notes, pressures, and minimum design requirements.
- Any column with "-" is relateto a note in the reference standard or may not be covered in the standard.
- Data columns from the reference standard may have been omitted.
- US units are inches, Metric Units are milimeters.
- Studs are measured parallel to the axis (L) from the first to the thread without the chamfers (points).
- Hex bolts are measured from under the head to the top of the bolt.
Flanges per ASME B16.47 Series A Class 400-900
| ASME | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Min Thickness Flange (T) | Length Through Hub (Y) | Diameter of Hub (X) | Hub Diameter Top (A) | Raised Face Diameter (R) | Drilling-Daimeter Bolt Circle | Drilling- # Bolt Holes | Drilling- Diameter Bolt Hole | Diameter of Bolt | Length of Bolts- Stud Bolt Raised Face (.25 in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16.47 Series A | 400 | 26 | 38.25 | 3.50 | 7.62 | 28.62 | 26.00 | 29.50 | 34.50 | 28 | 1 7/8 | 1 3/4 | 12.00 |
| 16.47 Series A | 400 | 28 | 40.75 | 3.75 | 8.12 | 30.81 | 28.00 | 31.50 | 37.00 | 28 | 2 | 1 7/8 | 13.00 |
| 16.47 Series A | 400 | 30 | 43.00 | 4.00 | 8.62 | 32.94 | 30.00 | 33.75 | 39.25 | 28 | 2 1/8 | 2 | 13.50 |
| 16.47 Series A | 400 | 32 | 45.25 | 4.25 | 9.12 | 35.00 | 32.00 | 36.00 | 41.50 | 28 | 2 1/8 | 2 | 14.00 |
| 16.47 Series A | 400 | 34 | 47.50 | 4.38 | 9.50 | 37.19 | 34.00 | 38.00 | 43.50 | 28 | 2 1/8 | 2 | 14.50 |
| 16.47 Series A | 400 | 36 | 50.00 | 4.50 | 9.88 | 39.38 | 36.00 | 40.25 | 46.00 | 32 | 2 1/8 | 2 | 14.50 |
| 16.47 Series A | 400 | 38 | 47.50 | 4.88 | 8.12 | 39.50 | 38.00 | 40.75 | 44.00 | 32 | 1 7/8 | 1 3/4 | 15.00 |
| 16.47 Series A | 400 | 40 | 50.00 | 5.12 | 8.50 | 41.50 | 40.00 | 43.00 | 46.25 | 32 | 2 | 1 7/8 | 15.50 |
| 16.47 Series A | 400 | 42 | 52.00 | 5.25 | 8.81 | 43.62 | 42.00 | 45.00 | 48.25 | 32 | 2 | 1 7/8 | 16.00 |
| 16.47 Series A | 400 | 44 | 54.50 | 5.50 | 9.18 | 45.62 | 44.00 | 47.25 | 50.50 | 32 | 2 1/8 | 2 | 16.50 |
| 16.47 Series A | 400 | 46 | 56.75 | 5.75 | 9.62 | 47.75 | 46.00 | 49.50 | 52.75 | 36 | 2 1/8 | 2 | 17.00 |
| 16.47 Series A | 400 | 48 | 59.50 | 6.00 | 10.12 | 49.88 | 48.00 | 51.50 | 55.25 | 28 | 2 3/8 | 2 1/4 | 18.00 |
| 16.47 Series A | 400 | 50 | 61.75 | 6.19 | 10.56 | 52.00 | 50.00 | 53.62 | 57.50 | 32 | 2 3/8 | 2 1/4 | 18.50 |
| 16.47 Series A | 400 | 52 | 63.75 | 6.38 | 10.88 | 54.00 | 52.00 | 55.62 | 59.50 | 32 | 2 3/8 | 2 1/4 | 19.00 |
| 16.47 Series A | 400 | 54 | 67.00 | 6.69 | 11.38 | 56.12 | 54.00 | 57.88 | 62.25 | 28 | 2 5/8 | 2 1/2 | 20.00 |
| 16.47 Series A | 400 | 56 | 69.00 | 6.88 | 11.75 | 58.25 | 56.00 | 60.12 | 64.25 | 32 | 2 5/8 | 2 1/2 | 20.50 |
| 16.47 Series A | 400 | 58 | 71.00 | 7.00 | 12.06 | 60.25 | 58.00 | 62.12 | 66.25 | 32 | 2 5/8 | 2 1/2 | 20.75 |
| 16.47 Series A | 400 | 60 | 74.25 | 7.31 | 12.56 | 62.38 | 60.00 | 64.38 | 69.00 | 32 | 2 7/8 | 2 3/4 | 21.75 |
| 16.47 Series A | 600 | 26 | 40.00 | 4.25 | 8.75 | 29.44 | 26.00 | 29.50 | 36.00 | 28 | 2 | 1 7/8 | 14.00 |
| 16.47 Series A | 600 | 28 | 42.25 | 4.38 | 9.25 | 31.62 | 28.00 | 31.50 | 38.00 | 28 | 2 1/8 | 2 | 14.50 |
| 16.47 Series A | 600 | 30 | 44.50 | 4.50 | 9.75 | 33.94 | 30.00 | 33.75 | 40.25 | 28 | 2 3/8 | 2 | 14.50 |
| 16.47 Series A | 600 | 32 | 47.00 | 4.62 | 10.25 | 36.12 | 32.00 | 36.00 | 42.50 | 28 | 2 3/8 | 2 1/4 | 15.25 |
| 16.47 Series A | 600 | 34 | 49.00 | 4.75 | 10.62 | 38.31 | 34.00 | 38.00 | 44.50 | 28 | 2 5/8 | 2 1/4 | 15.50 |
| 16.47 Series A | 600 | 36 | 51.75 | 4.88 | 11.12 | 40.62 | 36.00 | 40.25 | 47.00 | 28 | 2 3/8 | 2 1/2 | 16.50 |
| 16.47 Series A | 600 | 38 | 50.00 | 6.00 | 10.00 | 40.25 | 38.00 | 41.50 | 45.75 | 28 | 2 3/8 | 2 1/4 | 18.25 |
| 16.47 Series A | 600 | 40 | 52.00 | 6.25 | 10.38 | 42.25 | 40.00 | 43.75 | 47.75 | 32 | 2 5/8 | 2 1/4 | 18.75 |
| 16.47 Series A | 600 | 42 | 55.25 | 6.62 | 11.00 | 44.38 | 42.00 | 46.00 | 50.50 | 28 | 2 5/8 | 2 1/2 | 20.00 |
| 16.47 Series A | 600 | 44 | 57.25 | 6.81 | 11.38 | 46.50 | 44.00 | 48.25 | 52.50 | 32 | 2 5/8 | 2 1/2 | 20.25 |
| 16.47 Series A | 600 | 46 | 59.50 | 7.06 | 11.81 | 48.62 | 46.00 | 50.25 | 54.75 | 32 | 2 7/8 | 2 1/2 | 20.75 |
| 16.47 Series A | 600 | 48 | 62.75 | 7.44 | 12.44 | 50.75 | 48.00 | 52.50 | 57.50 | 32 | 3 1/8 | 2 3/4 | 22.00 |
| 16.47 Series A | 600 | 50 | 65.75 | 7.75 | 12.94 | 52.88 | 50.00 | 54.50 | 60.00 | 28 | 3 1/8 | 3 | 23.25 |
| 16.47 Series A | 600 | 52 | 67.75 | 8.00 | 13.25 | 54.88 | 52.00 | 56.50 | 62.00 | 32 | 3 1/8 | 3 | 23.75 |
| 16.47 Series A | 600 | 54 | 70.00 | 8.25 | 13.75 | 57.00 | 54.00 | 58.75 | 64.25 | 32 | 3 1/8 | 3 | 2425.00 |
| 16.47 Series A | 600 | 56 | 73.00 | 8.56 | 14.25 | 59.12 | 56.00 | 60.75 | 66.75 | 32 | 3 3/8 | 3 1/4 | 25.50 |
| 16.47 Series A | 600 | 58 | 75.00 | 8.75 | 14.53 | 61.12 | 58.00 | 63.00 | 68.75 | 32 | 3 3/8 | 3 1/4 | 25.75 |
| 16.47 Series A | 600 | 60 | 78.50 | 9.19 | 15.31 | 63.38 | 60.00 | 65.25 | 71.75 | 28 | 3 5/8 | 3 1/2 | 27.25 |
| 16.47 Series A | 900 | 26 | 42.75 | 5.50 | 11.25 | 30.50 | 26.00 | 29.50 | 37.50 | 20 | 2 7/8 | 2 3/4 | 18.25 |
| 16.47 Series A | 900 | 28 | 46.00 | 5.62 | 11.75 | 32.75 | 28.00 | 31.50 | 40.25 | 20 | 3 1/8 | 3 | 19.00 |
| 16.47 Series A | 900 | 30 | 48.50 | 5.88 | 12.25 | 35.00 | 30.00 | 33.75 | 42.75 | 20 | 3 1/8 | 3 | 19.50 |
| 16.47 Series A | 900 | 32 | 51.75 | 6.25 | 13.00 | 37.25 | 32.00 | 36.00 | 45.50 | 20 | 3 3/8 | 3 1/4 | 20.75 |
| 16.47 Series A | 900 | 34 | 55.00 | 6.50 | 13.75 | 39.62 | 34.00 | 38.00 | 48.25 | 20 | 3 5/8 | 3 1/2 | 21.75 |
| 16.47 Series A | 900 | 36 | 57.50 | 6.75 | 14.25 | 41.88 | 36.00 | 40.25 | 50.75 | 20 | 3 5/8 | 3 1/2 | 22.25 |
| 16.47 Series A | 900 | 38 | 57.50 | 7.50 | 13.88 | 42.25 | 38.00 | 43.25 | 50.75 | 20 | 3 5/8 | 3 1/2 | 23.75 |
| 16.47 Series A | 900 | 40 | 59.50 | 7.75 | 14.31 | 44.38 | 40.00 | 45.75 | 52.75 | 24 | 3 5/8 | 3 1/2 | 24.50 |
| 16.47 Series A | 900 | 42 | 61.50 | 8.12 | 14.62 | 46.31 | 42.00 | 47.75 | 54.75 | 24 | 3 5/8 | 3 1/2 | 25.00 |
| 16.47 Series A | 900 | 44 | 64.88 | 8.44 | 15.38 | 48.62 | 44.00 | 50.00 | 57.75 | 24 | 3 7/8 | 3 3/4 | 26.00 |
| 16.47 Series A | 900 | 46 | 68.25 | 8.88 | 16.18 | 50.88 | 46.00 | 52.50 | 60.50 | 24 | 4 1/8 | 4 | 27.50 |
| 16.47 Series A | 900 | 48 | 70.25 | 9.19 | 16.50 | 52.88 | 48.00 | 54.50 | 62.50 | 24 | 4 1/8 | 4 | 28.00 |
| 16.47 Series A | 900 | 50 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series A | 900 | 52 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series A | 900 | 54 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series A | 900 | 56 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series A | 900 | 58 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series A | 900 | 60 | … | … | … | … | … | … | … | … | … | … | … |
Tbl. 4.F.14
Notes:
- Refer to ANSI/ASME B16.47 for notes, pressures, and minimum design requirements.
- Any column with "-" is relateto a note in the reference standard or may not be covered in the standard.
- Data columns from the reference standard may have been omitted.
- US units are inches, Metric Units are milimeters.
- Studs are measured parallel to the axis (L) from the first to the thread without the chamfers (points).
- Hex bolts are measured from under the head to the top of the bolt.
Flanges per ASME B16.47 Series B Class 75-300
| ASME | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Min Thickness Flange (T) | Length Through Hub (Y) | Diameter of Hub (X) | Hub Diameter Top (A or H) | Raised Face Diameter (R) | Drilling-Daimeter Bolt Circle | Drilling- # Bolt Holes | Drilling- Diameter Bolt Hole | Diameter of Bolt | Length of Bolts- Stud Bolt Raised Face (.06 in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16.47 Series B | 75 | 26 | 30.00 | 1.25 | 2.25 | 26.62 | 26.06 | 27.75 | 28.50 | 36 | 3/4 | 5/8 | 4.50 |
| 16.47 Series B | 75 | 28 | 32.00 | 1.25 | 2.38 | 28.62 | 28.06 | 29.75 | 30.50 | 40 | 3/4 | 5/8 | 4.50 |
| 16.47 Series B | 75 | 30 | 34.00 | 1.25 | 2.50 | 30.62 | 30.06 | 31.75 | 32.50 | 44 | 3/4 | 5/8 | 4.75 |
| 16.47 Series B | 75 | 32 | 36.00 | 1.32 | 2.69 | 32.62 | 32.06 | 33.75 | 34.50 | 48 | 3/4 | 5/8 | 4.75 |
| 16.47 Series B | 75 | 34 | 38.00 | 1.32 | 2.82 | 34.62 | 34.06 | 35.75 | 36.50 | 52 | 3/4 | 5/8 | 4.75 |
| 16.47 Series B | 75 | 36 | 40.69 | 1.38 | 3.32 | 36.81 | 36.06 | 38.00 | 39.06 | 40 | 7/8 | 3/4 | 5.00 |
| 16.47 Series B | 75 | 38 | 42.69 | 1.44 | 3.44 | 38.81 | 38.06 | 40.00 | 41.06 | 40 | 7/8 | 3/4 | 5.25 |
| 16.47 Series B | 75 | 40 | 44.69 | 1.44 | 3.57 | 40.81 | 40.06 | 42.00 | 43.06 | 44 | 7/8 | 3/4 | 5.25 |
| 16.47 Series B | 75 | 42 | 46.69 | 1.50 | 3.69 | 42.81 | 42.06 | 44.00 | 45.06 | 48 | 7/8 | 3/4 | 5.25 |
| 16.47 Series B | 75 | 44 | 49.25 | 1.63 | 4.07 | 44.88 | 44.06 | 46.25 | 47.38 | 36 | 1 | 7/8 | 5.75 |
| 16.47 Series B | 75 | 46 | 51.25 | 1.69 | 4.19 | 46.88 | 46.06 | 48.25 | 49.38 | 40 | 1 | 7/8 | 6.00 |
| 16.47 Series B | 75 | 48 | 53.25 | 1.75 | 4.32 | 48.88 | 48.06 | 50.25 | 51.38 | 44 | 1 | 7/8 | 6.00 |
| 16.47 Series B | 75 | 50 | 55.25 | 1.82 | 4.50 | 50.94 | 50.06 | 52.25 | 53.38 | 44 | 1 | 7/8 | 6.25 |
| 16.47 Series B | 75 | 52 | 57.38 | 1.82 | 4.69 | 52.94 | 52.06 | 54.25 | 55.50 | 48 | 1 | 7/8 | 6.25 |
| 16.47 Series B | 75 | 54 | 59.38 | 1.88 | 4.88 | 55.00 | 54.06 | 56.25 | 57.50 | 48 | 1 | 7/8 | 6.25 |
| 16.47 Series B | 75 | 56 | 62.00 | 1.94 | 5.25 | 57.12 | 56.06 | 58.50 | 59.88 | 40 | 1 1/8 | 1 | 6.75 |
| 16.47 Series B | 75 | 58 | 64.00 | 2.00 | 5.38 | 59.12 | 58.06 | 60.50 | 61.88 | 44 | 1 1/8 | 1 | 7.00 |
| 16.47 Series B | 75 | 60 | 66.00 | 2.13 | 5.63 | 61.12 | 60.06 | 62.50 | 63.88 | 44 | 1 1/8 | 1 | 7.25 |
| 16.47 Series B | 150 | 26 | 30.94 | 1.57 | 3.44 | 26.94 | 26.06 | 28.00 | 29.31 | 36 | 7/8 | 3/4 | 5.50 |
| 16.47 Series B | 150 | 28 | 32.94 | 1.69 | 3.69 | 28.94 | 28.06 | 30.00 | 31.31 | 40 | 7/8 | 3/4 | 5.75 |
| 16.47 Series B | 150 | 30 | 34.94 | 1.69 | 3.88 | 31.00 | 30.06 | 32.00 | 33.31 | 44 | 7/8 | 3/4 | 5.75 |
| 16.47 Series B | 150 | 32 | 37.06 | 1.75 | 4.19 | 33.06 | 32.06 | 34.00 | 35.44 | 48 | 7/8 | 3/4 | 5.75 |
| 16.47 Series B | 150 | 34 | 39.56 | 1.88 | 4.28 | 35.12 | 34.06 | 36.25 | 37.69 | 40 | 1 | 7/8 | 6.25 |
| 16.47 Series B | 150 | 36 | 41.62 | 2.00 | 4.57 | 37.19 | 36.06 | 38.25 | 39.75 | 44 | 1 | 7/8 | 6.50 |
| 16.47 Series B | 150 | 38 | 44.25 | 2.07 | 4.82 | 39.25 | 38.12 | 40.25 | 42.12 | 40 | 1 1/8 | 1 | 7.25 |
| 16.47 Series B | 150 | 40 | 46.25 | 2.13 | 5.00 | 41.31 | 40.12 | 42.50 | 44.12 | 44 | 1 1/8 | 1 | 7.25 |
| 16.47 Series B | 150 | 42 | 48.25 | 2.25 | 5.19 | 43.38 | 42.12 | 44.50 | 46.12 | 48 | 1 1/8 | 1 | 7.50 |
| 16.47 Series B | 150 | 44 | 50.25 | 2.32 | 5.32 | 445.38 | 44.12 | 46.50 | 48.12 | 52 | 1 1/8 | 1 | 7.75 |
| 16.47 Series B | 150 | 46 | 52.81 | 2.38 | 5.63 | 47.44 | 46.12 | 48.62 | 50.56 | 40 | 1 1/4 | 1 1/8 | 8.00 |
| 16.47 Series B | 150 | 48 | 54.81 | 2.50 | 5.82 | 49.50 | 48.12 | 50.75 | 52.56 | 44 | 1 1/4 | 1 1/8 | 8.25 |
| 16.47 Series B | 150 | 50 | 56.81 | 2.63 | 6.00 | 51.50 | 50.12 | 52.75 | 54.56 | 48 | 1 1/4 | 1 1/8 | 8.50 |
| 16.47 Series B | 150 | 52 | 58.81 | 2.69 | 6.13 | 53.56 | 52.12 | 54.75 | 56.56 | 52 | 1 1/4 | 1 1/8 | 8.75 |
| 16.47 Series B | 150 | 54 | 61.00 | 2.75 | 6.32 | 55.62 | 54.12 | 56.75 | 58.75 | 56 | 1 1/4 | 1 1/8 | 8.75 |
| 16.47 Series B | 150 | 56 | 63.00 | 2.82 | 6.50 | 57.62 | 56.12 | 58.75 | 60.75 | 60 | 1 1/4 | 1 1/8 | 9.00 |
| 16.47 Series B | 150 | 58 | 65.94 | 2.88 | 6.82 | 59.69 | 58.12 | 60.75 | 63.44 | 48 | 1 3/8 | 1 1/4 | 9.25 |
| 16.47 Series B | 150 | 60 | 67.94 | 2.94 | 7.00 | 61.81 | 60.12 | 63.00 | 65.44 | 52 | 1 3/8 | 1 1/4 | 9.50 |
| 16.47 Series B | 300 | 26 | 34.12 | 3.44 | 5.63 | 27.62 | 26.19 | 29.00 | 31.62 | 32 | 1 3/8 | 1 1/4 | 10.50 |
| 16.47 Series B | 300 | 28 | 36.25 | 3.44 | 5.81 | 29.75 | 28.19 | 31.00 | 33.75 | 36 | 1 3/8 | 1 1/4 | 10.50 |
| 16.47 Series B | 300 | 30 | 39.00 | 3.63 | 6.16 | 32.00 | 30.25 | 33.25 | 36.25 | 36 | 1 1/2 | 1 3/8 | 11.25 |
| 16.47 Series B | 300 | 32 | 41.50 | 4.00 | 6.56 | 34.00 | 32.25 | 35.50 | 38.50 | 32 | 1 5/8 | 1 1/2 | 12.25 |
| 16.47 Series B | 300 | 34 | 43.62 | 4.00 | 6.75 | 36.12 | 34.25 | 37.50 | 40.62 | 36 | 1 5/8 | 1 1/2 | 12.25 |
| 16.47 Series B | 300 | 36 | 46.12 | 4.00 | 7.06 | 38.00 | 36.25 | 39.75 | 42.88 | 32 | 1 3/4 | 1 5/8 | 12.50 |
| 16.47 Series B | 300 | 38 | 48.12 | 4.31 | 7.50 | 40.00 | 38.25 | 41.75 | 44.88 | 36 | 1 3/4 | 1 5/8 | 13.00 |
| 16.47 Series B | 300 | 40 | 50.12 | 4.50 | 7.75 | 42.00 | 40.25 | 43.88 | 46.88 | 40 | 1 3/4 | 1 5/8 | 13.50 |
| 16.47 Series B | 300 | 42 | 52.50 | 4.63 | 8.00 | 44.00 | 42.31 | 46.00 | 49.00 | 36 | 1 7/8 | 1 3/4 | 14.00 |
| 16.47 Series B | 300 | 44 | 54.50 | 4.94 | 8.38 | 46.19 | 44.31 | 48.00 | 51.00 | 40 | 1 7/8 | 1 3/4 | 14.50 |
| 16.47 Series B | 300 | 46 | 57.50 | 5.00 | 8.69 | 48.38 | 46.31 | 50.00 | 53.75 | 36 | 2 | 1 7/8 | 15.00 |
| 16.47 Series B | 300 | 48 | 59.50 | 5.00 | 8.75 | 50.31 | 48.31 | 52.25 | 55.75 | 40 | 2 | 1 7/8 | 15.00 |
| 16.47 Series B | 300 | 50 | 61.50 | 5.38 | 9.19 | 52.38 | 50.31 | 54.25 | 57.75 | 44 | 2 | 1 7/8 | 15.75 |
| 16.47 Series B | 300 | 52 | 63.50 | 5.56 | 9.50 | 54.44 | 52.31 | 56.25 | 59.75 | 48 | 2 | 1 7/8 | 16.00 |
| 16.47 Series B | 300 | 54 | 65.88 | 5.32 | 9.38 | 56.50 | 54.31 | 58.25 | 62.12 | 48 | 2 | 1 7/8 | 15.75 |
| 16.47 Series B | 300 | 56 | 69.50 | 6.00 | 10.50 | 58.81 | 56.31 | 60.50 | 65.00 | 36 | 2 3/8 | 2 1/4 | 17.75 |
| 16.47 Series B | 300 | 58 | 71.94 | 6.00 | 10.75 | 60.94 | 58.31 | 62.75 | 67.44 | 40 | 2 3/8 | 2 1/4 | 17.75 |
| 16.47 Series B | 300 | 60 | 73.94 | 5.88 | 10.63 | 62.94 | 60.31 | 65.00 | 69.44 | 40 | 2 3/8 | 2 1/4 | 17.50 |
Tbl. 4.F.15
Notes:
- Refer to ANSI/ASME B16.47 for notes, pressures, and minimum design requirements.
- Any column with "-" is relateto a note in the reference standard or may not be covered in the standard.
- Data columns from the reference standard may have been omitted.
- US units are inches, Metric Units are milimeters.
- Studs are measured parallel to the axis (L) from the first to the thread without the chamfers (points).
- Hex bolts are measured from under the head to the top of the bolt.
Flanges per ASME B16.47 Series B Class 400-900
| ASME | Flange Class | Nominal Pipe Size (NPS) | Outside Diameter Flange (O) | Min Thickness Flange (T) | Length Through Hub (Y) | Diameter of Hub (X) | Hub Diameter Top (A or H) | Raised Face Diameter (R) | Drilling-Daimeter Bolt Circle | Drilling- # Bolt Holes | Drilling- Diameter Bolt Hole | Diameter of Bolt | Length of Bolts- Stud Bolt Raised Face (.25 in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16.47 Series B | 400 | 26 | 33.50 | 3.50 | 5.88 | 27.12 | 26.00 | 28.00 | 30.75 | 28 | 1 1/2 | 1 3/8 | 14.25 |
| 16.47 Series B | 400 | 28 | 36.00 | 3.75 | 6.25 | 29.12 | 28.00 | 30.00 | 33.00 | 24 | 1 5/8 | 1 1/2 | 14.75 |
| 16.47 Series B | 400 | 30 | 38.25 | 4.00 | 6.69 | 31.25 | 30.00 | 32.25 | 35.25 | 28 | 1 5/8 | 1 1/2 | 15.50 |
| 16.47 Series B | 400 | 32 | 40.75 | 4.25 | 7.06 | 33.25 | 32.00 | 34.38 | 37.25 | 28 | 1 3/4 | 1 5/8 | 16.25 |
| 16.47 Series B | 400 | 34 | 42.75 | 4.38 | 7.38 | 35.38 | 34.00 | 36.50 | 39.50 | 32 | 1 3/4 | 1 5/8 | 17.25 |
| 16.47 Series B | 400 | 36 | 45.50 | 4.69 | 7.88 | 37.50 | 36.00 | 38.62 | 42.00 | 28 | 1 7/8 | 1 3/4 | 18.00 |
| 16.47 Series B | 400 | 38 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 40 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 42 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 44 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 46 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 48 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 50 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 52 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 54 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 56 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 58 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 400 | 60 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 26 | 35.00 | 4.38 | 7.12 | 27.50 | 26.00 | 28.62 | 31.75 | 28 | 1 3/4 | 1 5/8 | 14.25 |
| 16.47 Series B | 600 | 28 | 37.50 | 4.56 | 7.50 | 29.62 | 28.00 | 30.88 | 34.00 | 28 | 1 7/8 | 1 3/4 | 14.75 |
| 16.47 Series B | 600 | 30 | 40.25 | 4.94 | 8.06 | 31.75 | 30.00 | 33.12 | 36.50 | 28 | 2 | 1 7/8 | 15.50 |
| 16.47 Series B | 600 | 32 | 42.75 | 5.12 | 8.50 | 33.88 | 32.00 | 35.25 | 38.75 | 28 | 2 1/8 | 2 | 16.25 |
| 16.47 Series B | 600 | 34 | 45.75 | 5.56 | 9.19 | 36.00 | 34.00 | 37.50 | 41.50 | 24 | 2 3/8 | 2 1/4 | 17.25 |
| 16.47 Series B | 600 | 36 | 47.75 | 5.75 | 9.56 | 38.12 | 36.00 | 39.75 | 43.50 | 28 | 2 3/8 | 2 1/4 | 18.00 |
| 16.47 Series B | 600 | 38 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 40 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 42 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 44 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 46 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 48 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 50 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 52 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 54 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 56 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 58 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 600 | 60 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 26 | 40.25 | 5.31 | 10.19 | 29.25 | 26.00 | 30.00 | 35.50 | 20 | 2 5/8 | 2 1/2 | 17.75 |
| 16.47 Series B | 900 | 28 | 43.50 | 5.81 | 10.88 | 31.38 | 28.00 | 32.25 | 38.25 | 20 | 2 7/8 | 2 3/4 | 19.25 |
| 16.47 Series B | 900 | 30 | 46.50 | 6.12 | 11.38 | 33.50 | 30.00 | 34.50 | 40.75 | 20 | 3 1/8 | 3 | 20.00 |
| 16.47 Series B | 900 | 32 | 48.75 | 6.31 | 11.94 | 35.75 | 32.00 | 36.50 | 43.00 | 20 | 3 1/8 | 3 | 20.75 |
| 16.47 Series B | 900 | 34 | 51.75 | 6.75 | 12.56 | 37.88 | 34.00 | 39.00 | 45.50 | 20 | 3 3/8 | 3 1/4 | 22.25 |
| 16.47 Series B | 900 | 36 | 53.00 | 6.81 | 12.81 | 40.00 | 36.00 | 40.50 | 47.25 | 24 | 3 1/8 | 3 | 22.50 |
| 16.47 Series B | 900 | 38 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 40 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 42 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 44 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 46 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 48 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 50 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 52 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 54 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 56 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 58 | … | … | … | … | … | … | … | … | … | … | … |
| 16.47 Series B | 900 | 60 | … | … | … | … | … | … | … | … | … | … | … |
Tbl. 4.F.16
Notes:
- Refer to ANSI/ASME B16.47 for notes, pressures, and minimum design requirements.
- Any column with "-" is relateto a note in the reference standard or may not be covered in the standard.
- Data columns from the reference standard may have been omitted.
- US units are inches, Metric Units are milimeters.
- Studs are measured parallel to the axis (L) from the first to the thread without the chamfers (points).
- Hex bolts are measured from under the head to the top of the bolt.
Last updated on July 19th, 2024
